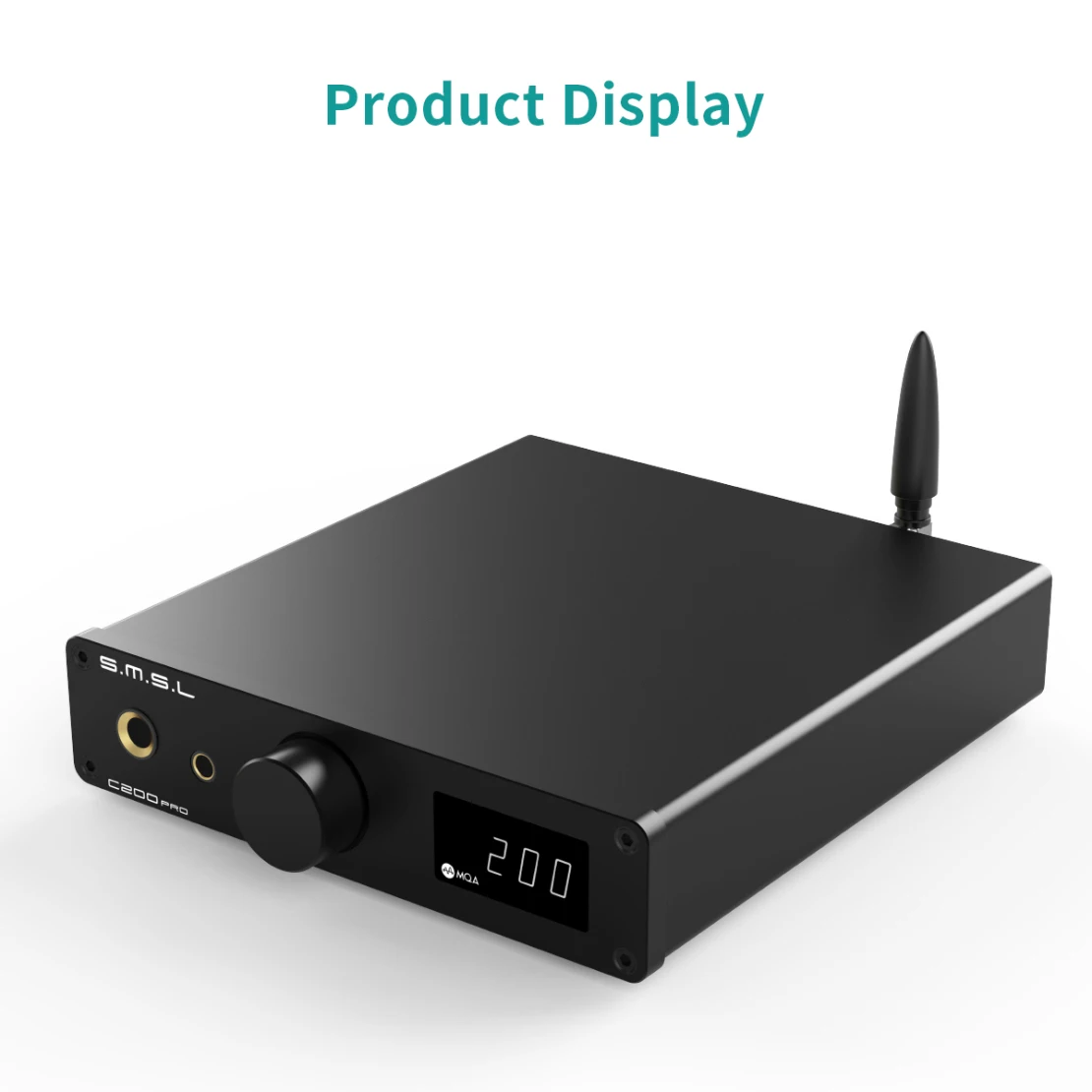

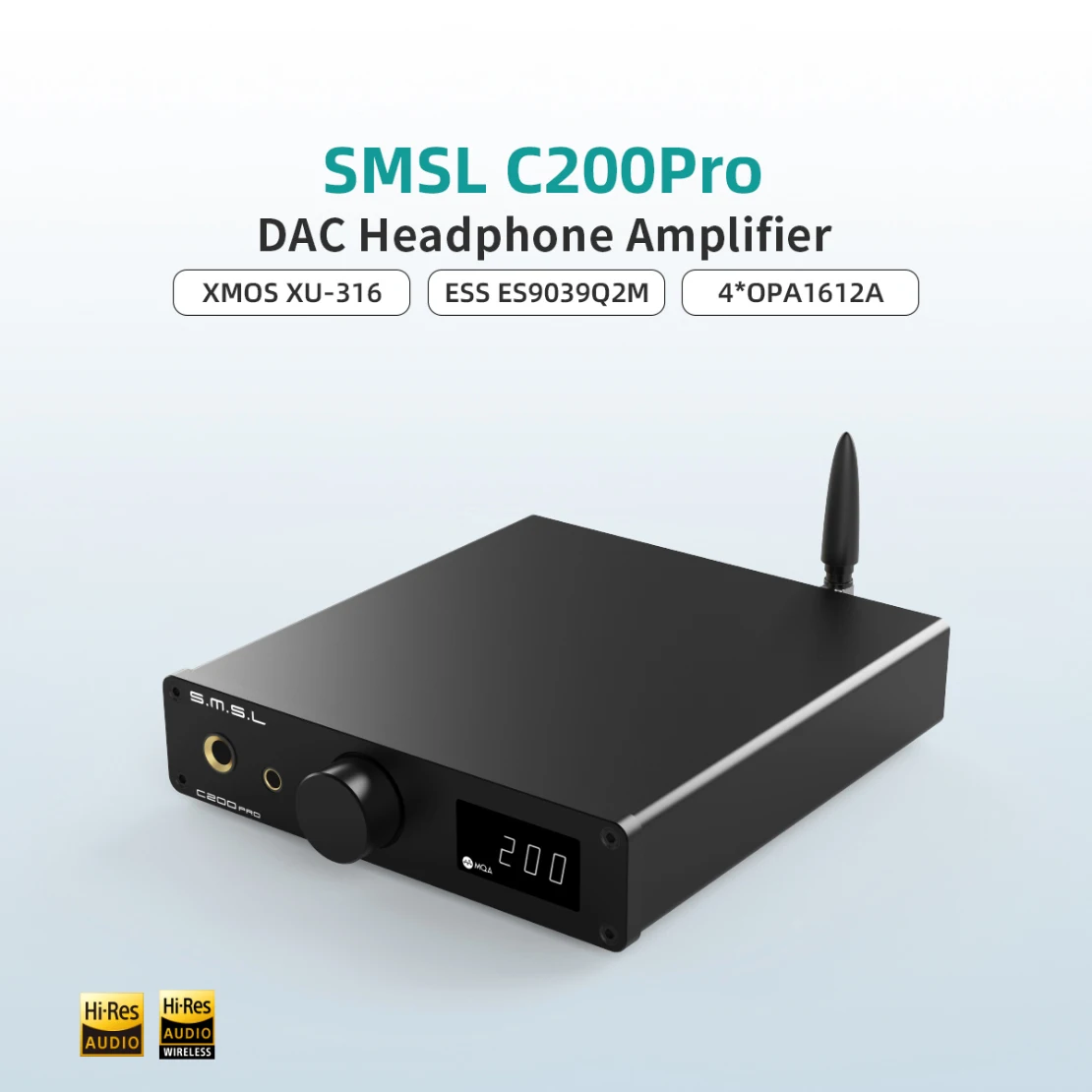

SMSL C200 PRO MQA LDAC DSD512 AptX-HD HIFI Headphone Audio Bluetooth USB DAC AMP Amplifier with Remote Control 4.4MM Balance

SMSL C200 PRO Features

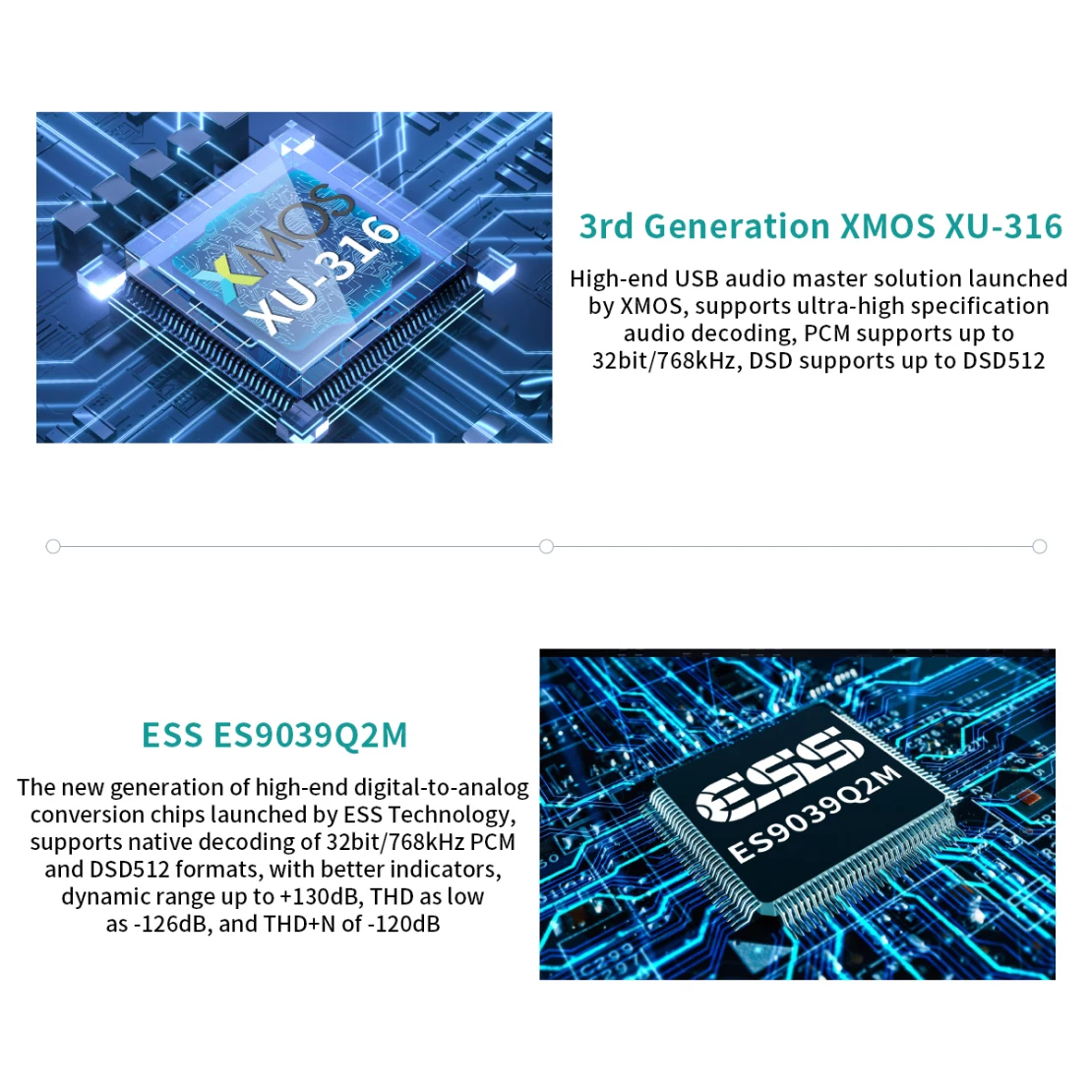

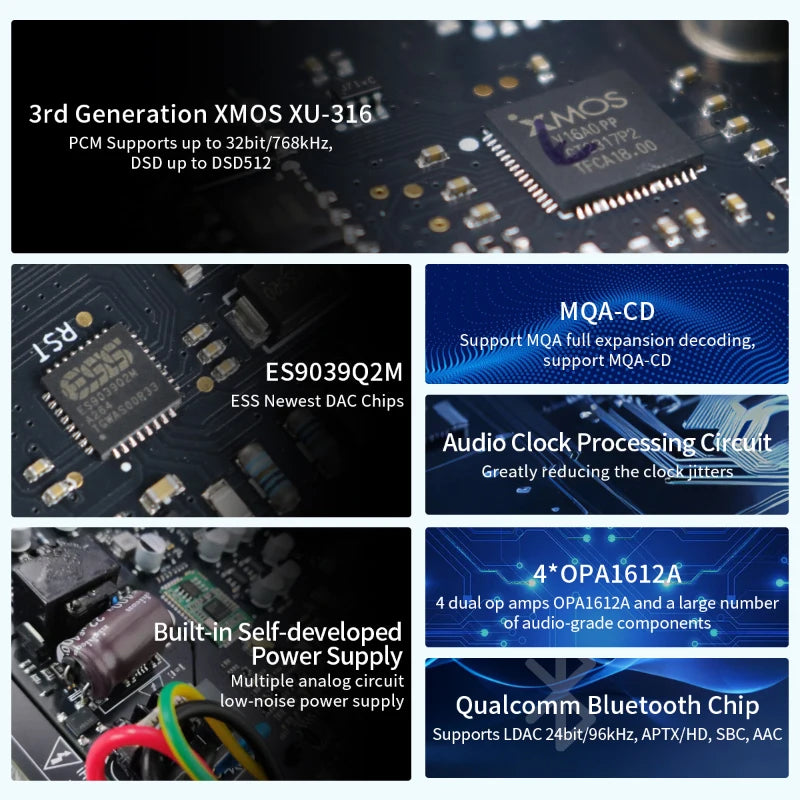

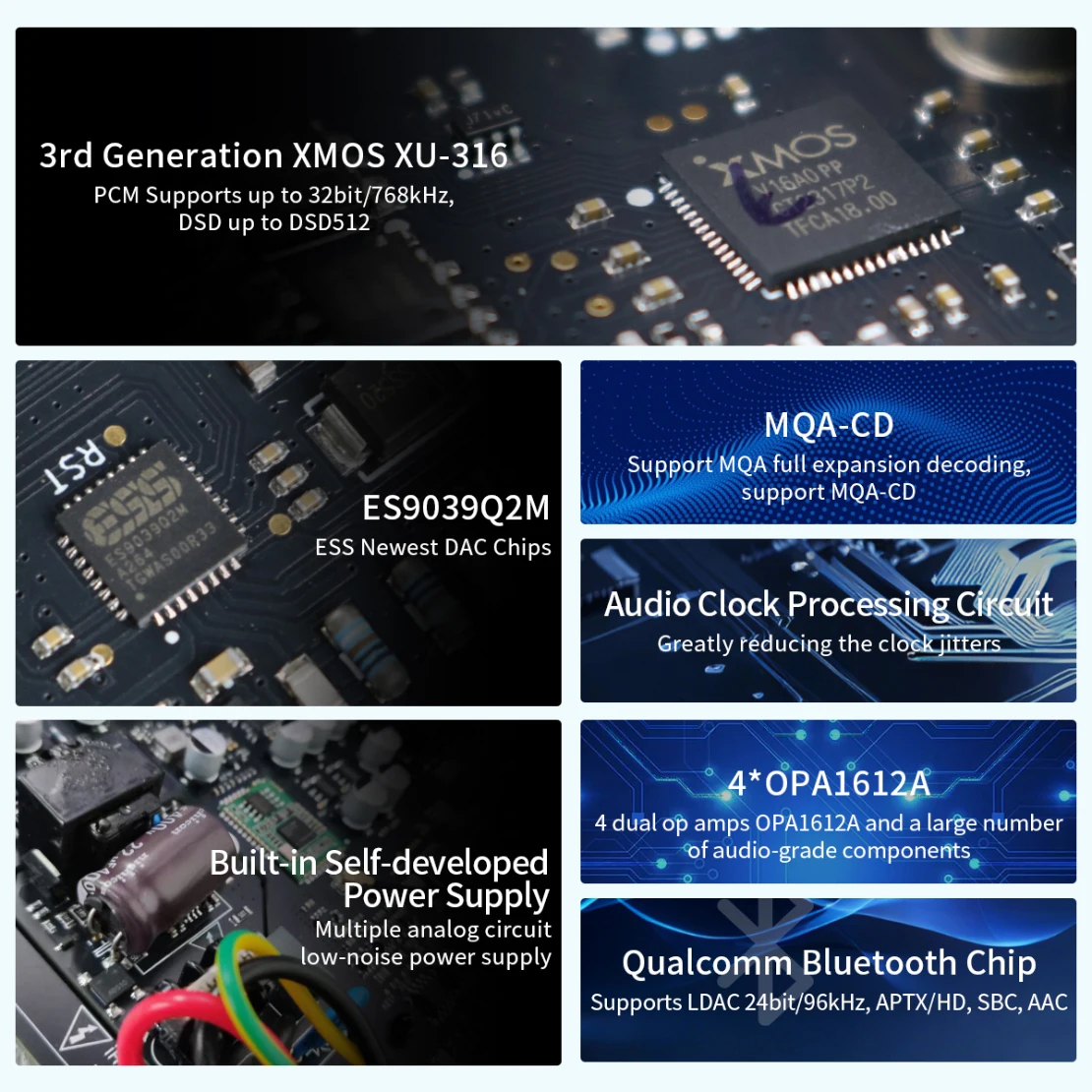

The brand-new third-generation XMOS XU-316, supports PCM up to 32bit/768kHz and DSD up
to DSD256;
Supports MQA full expansion decoding and MQA-CD;
ESS new generation high-end digital analog chip ES9039Q2M;
Qualcomm Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC;
4x high-end dual op amp OPA1612 and a large number of audio grade components;
Audio clock processing circuit, greatly reducing the clock jitter;
Input ports (except Bluetooth) support DSD transmission, coaxial and optical supports DoP64;
B
power supplies;

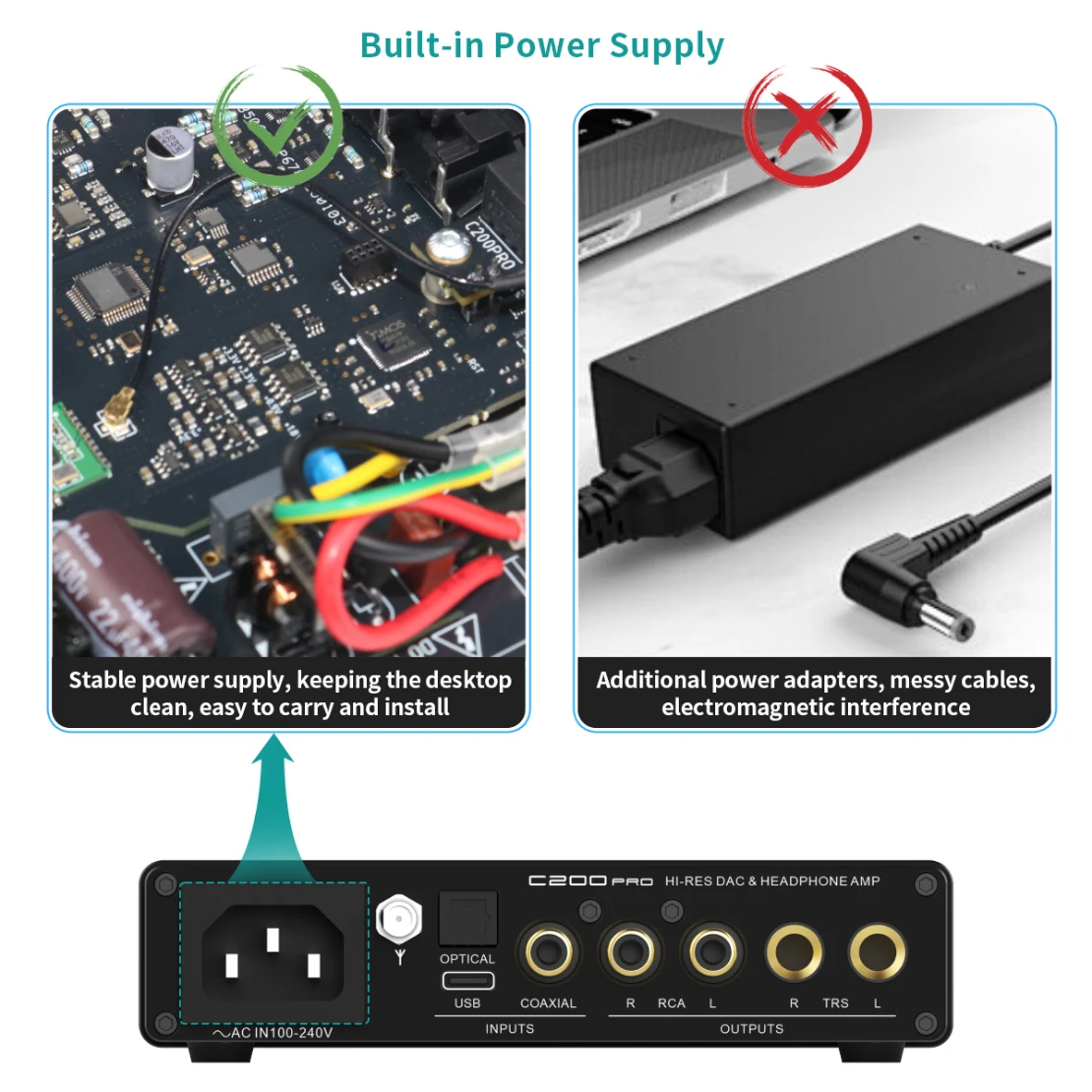

uilt in self-developed low-noise switching power supply and multiple analog circuit low-noise

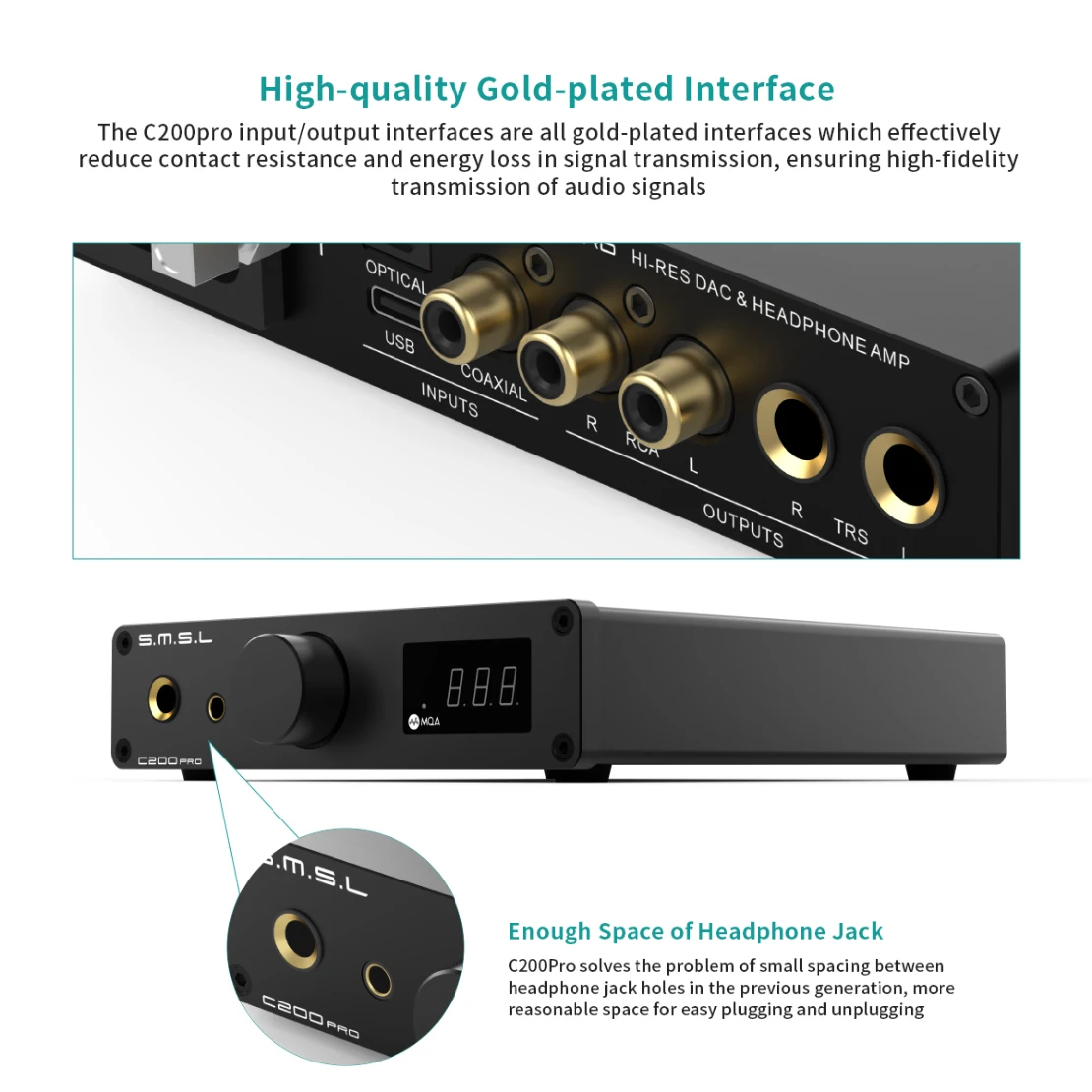

High-quality gold-plated input and output connection terminals;
Japan Audio Association (JAS) Hi-Res certification;

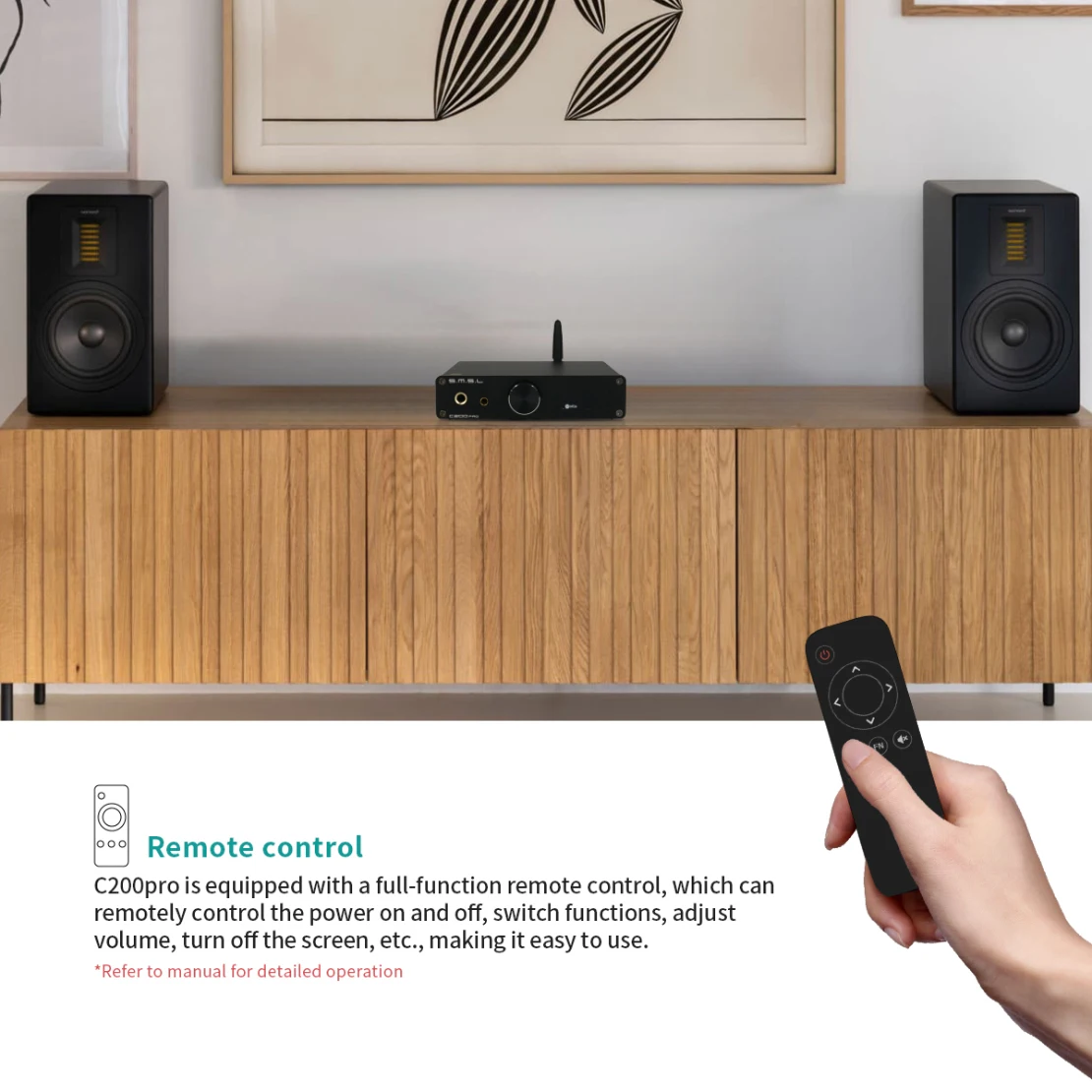

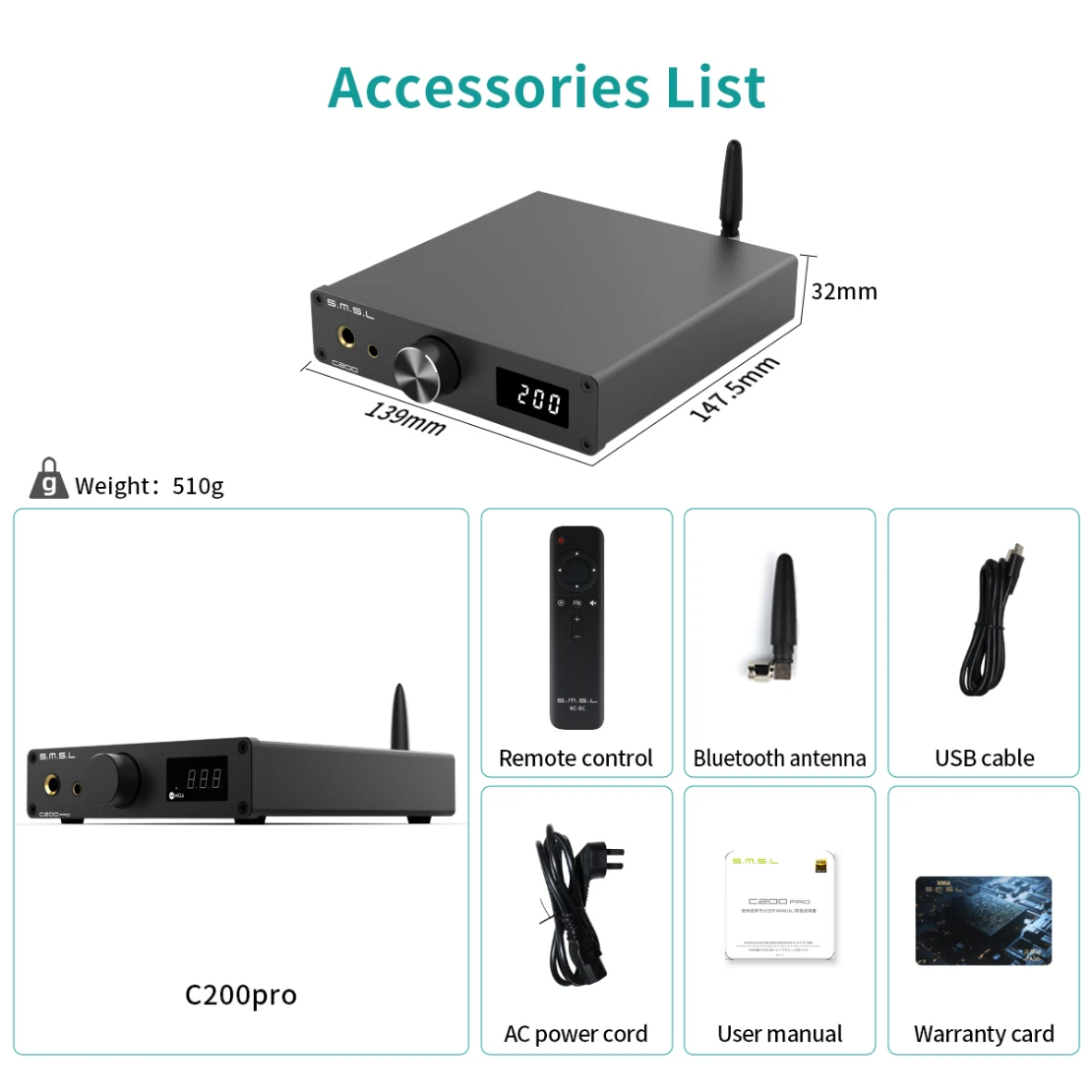

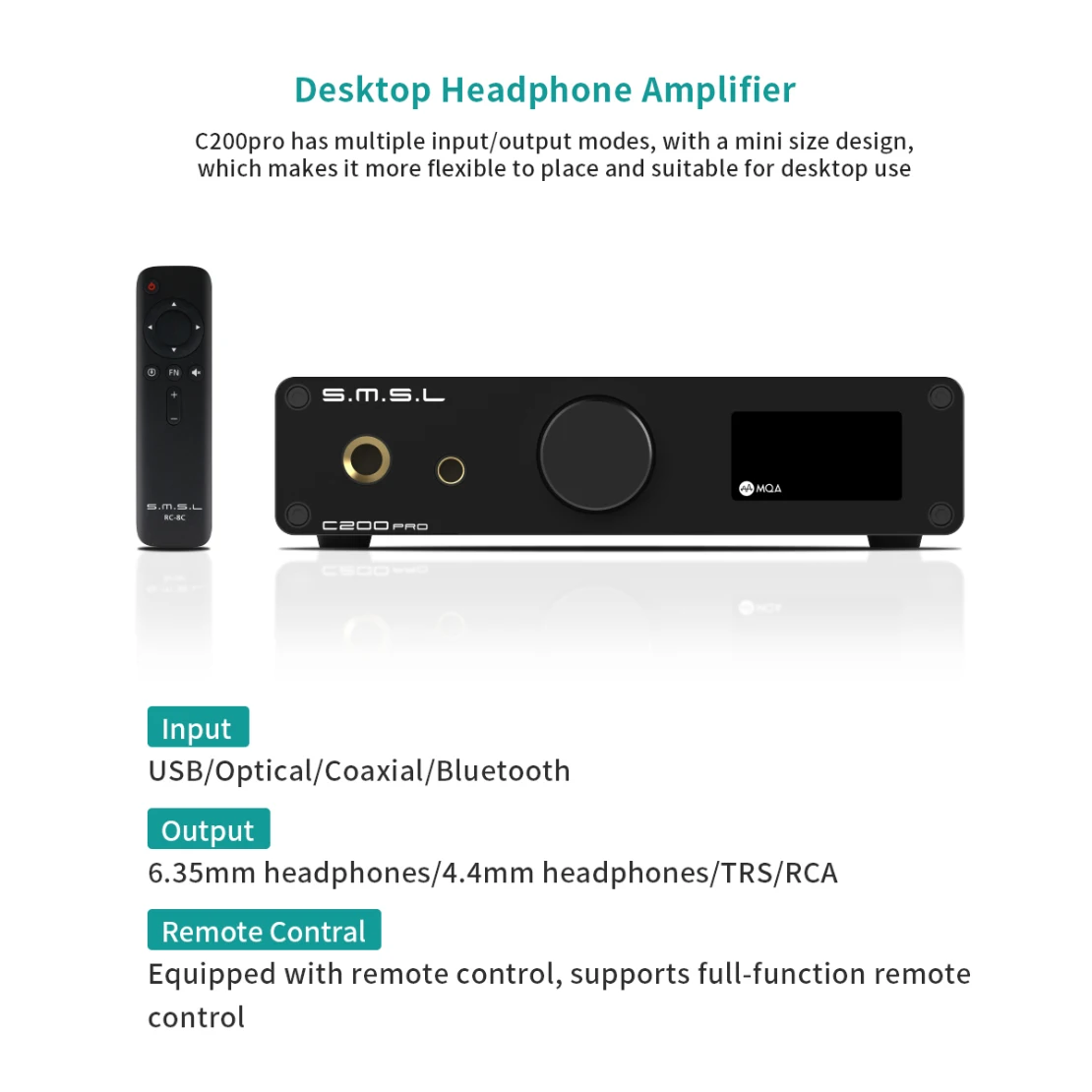

Equipped with full-function remote control.

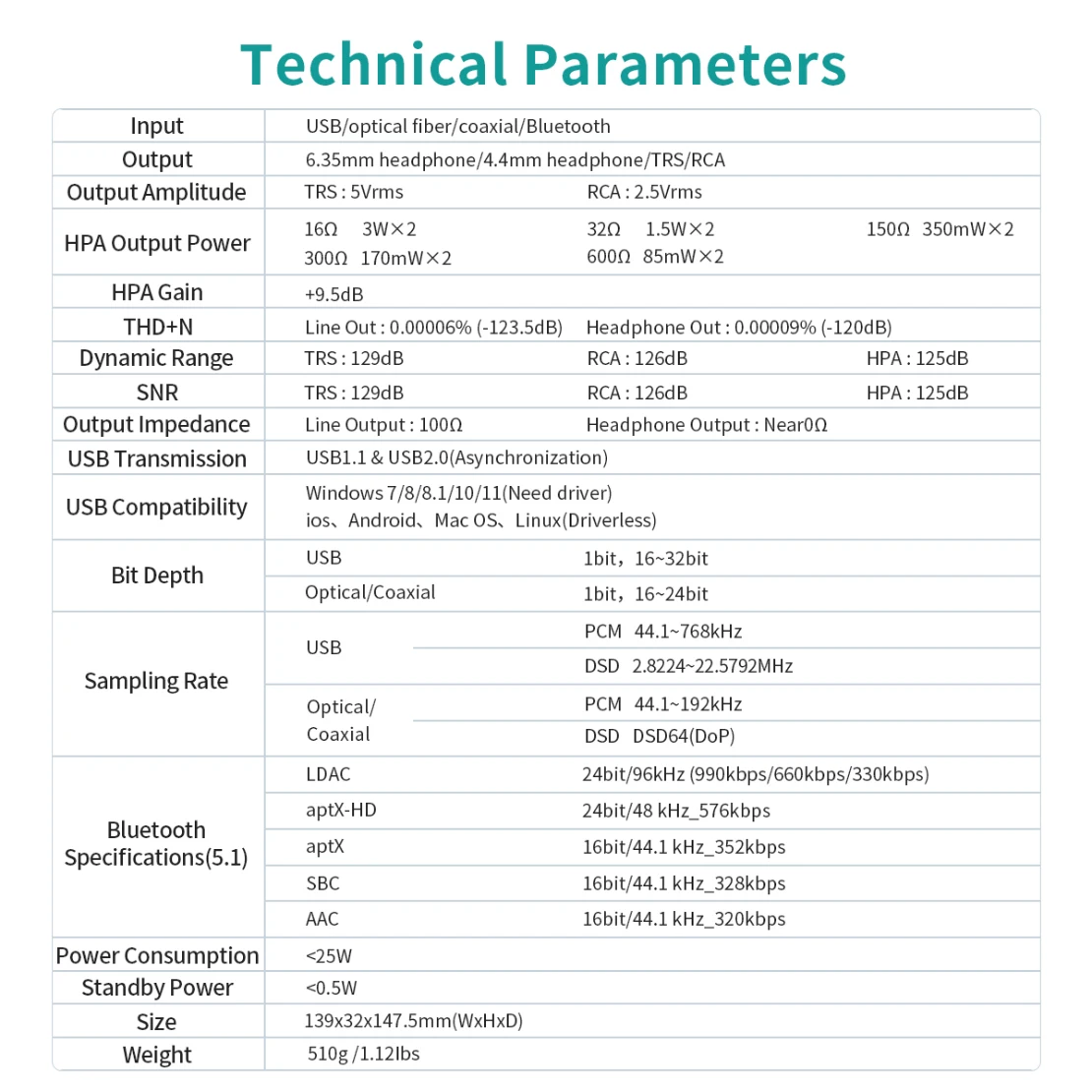

SMSL C200 PRO Specifications

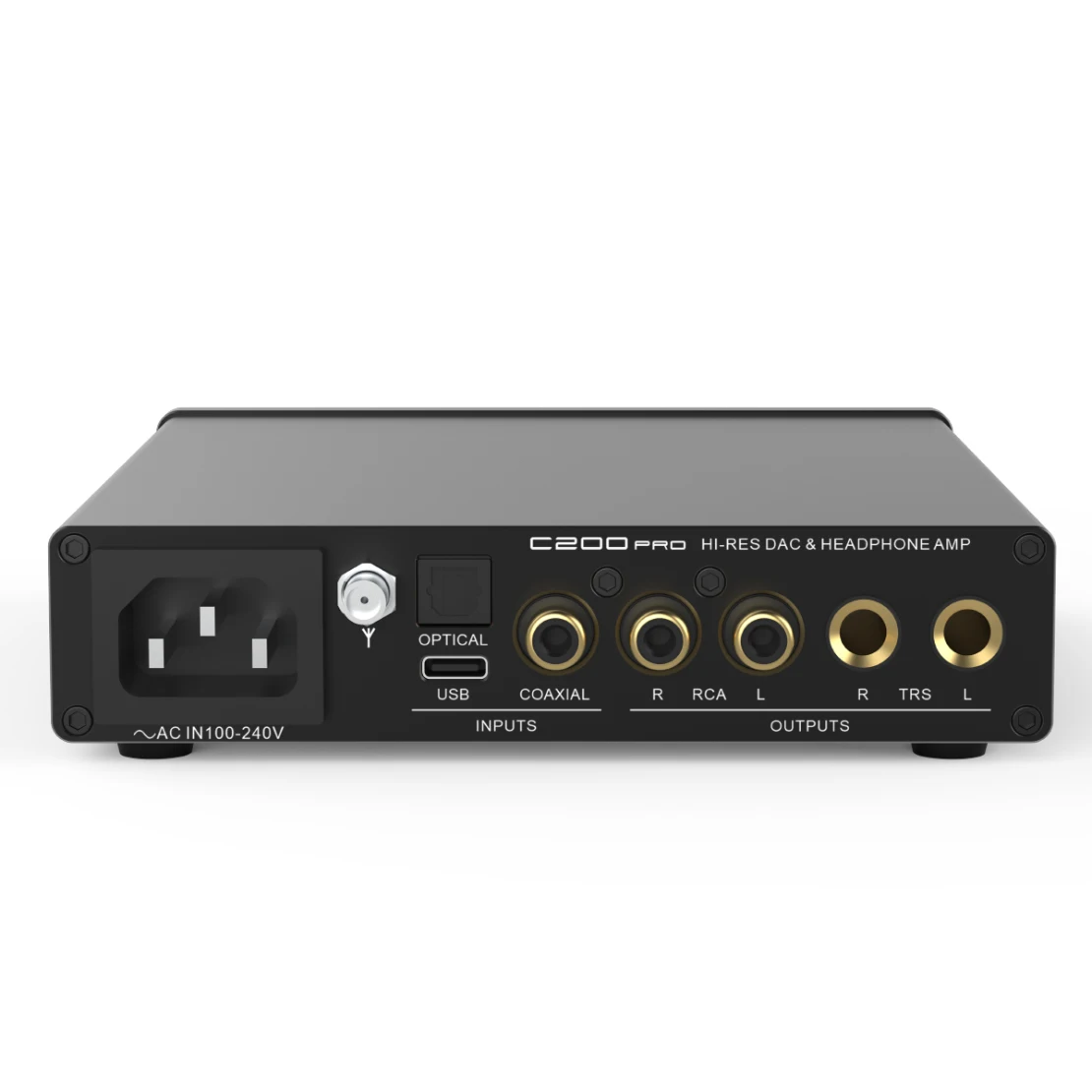

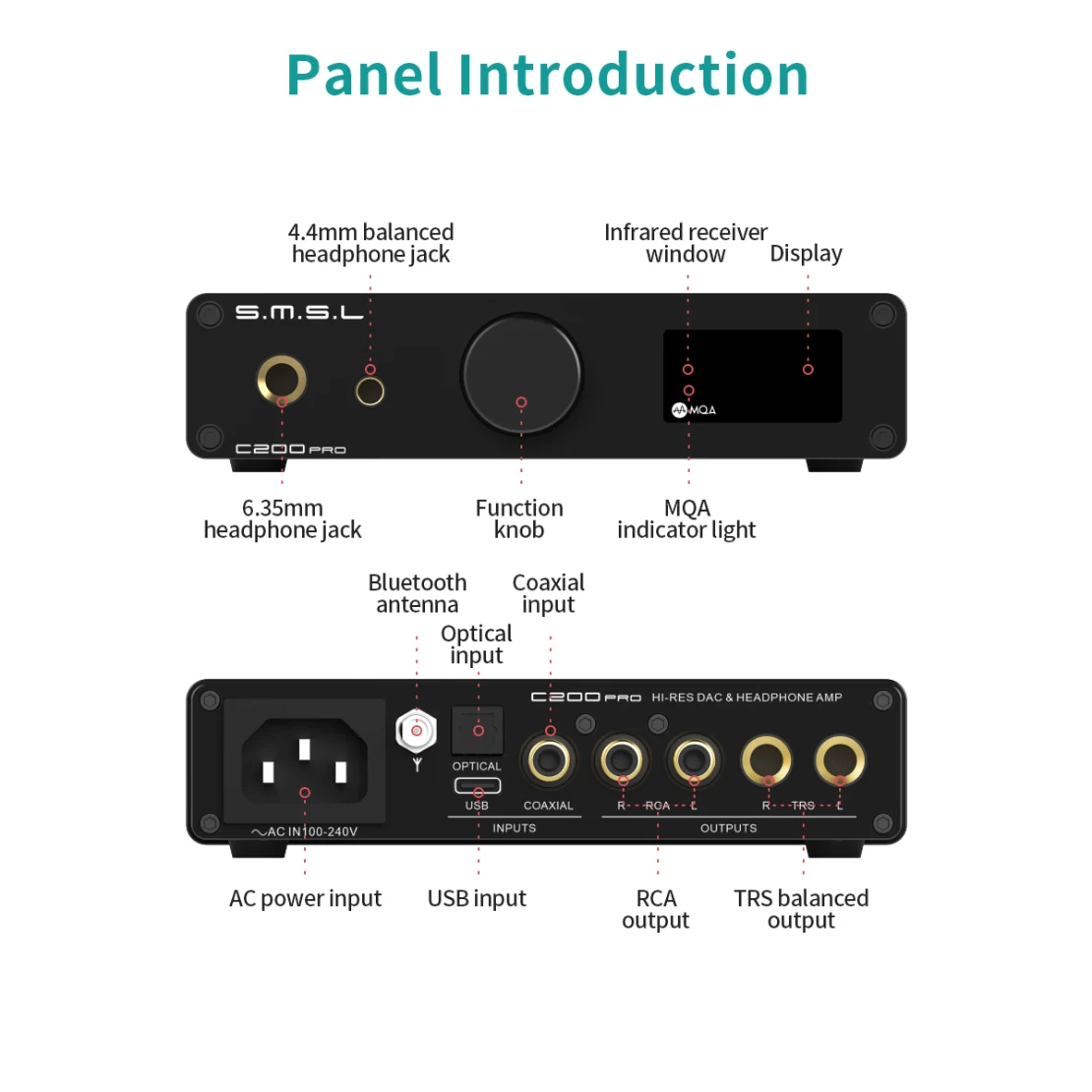

Input:USB/Optical/Coaxial/Bluetooth
Output:6.35mm headphone/4.4mm headphone/TRS/RCA

Output level
TRS 5Vrms,RCA 2.5Vrms

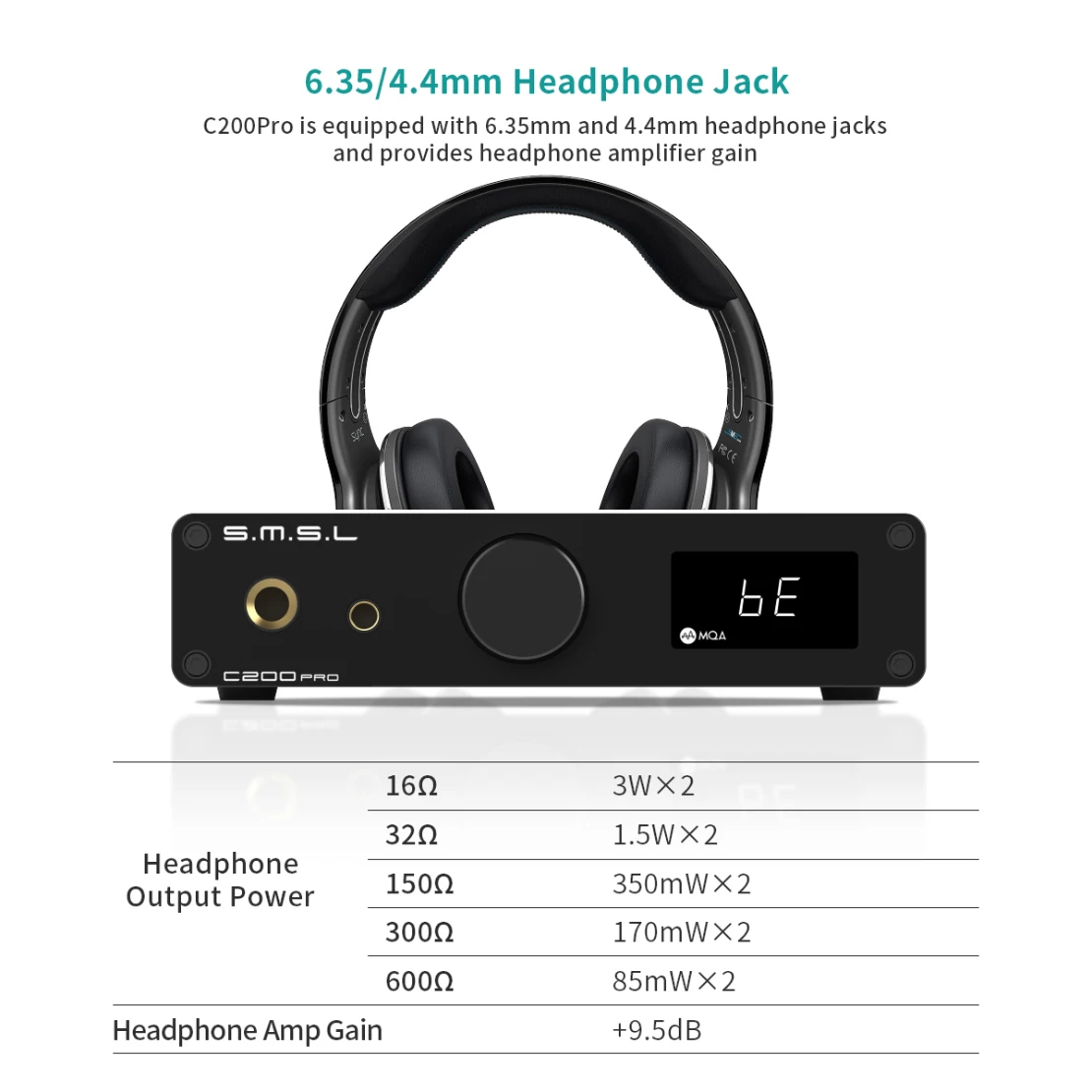

Headphone Output Power
16Ω 3W×2,32Ω 1.5W×2,150Ω 350mW×2,300Ω 170mW×2,600Ω 85mW×2

Headphone Gain +9.5dB

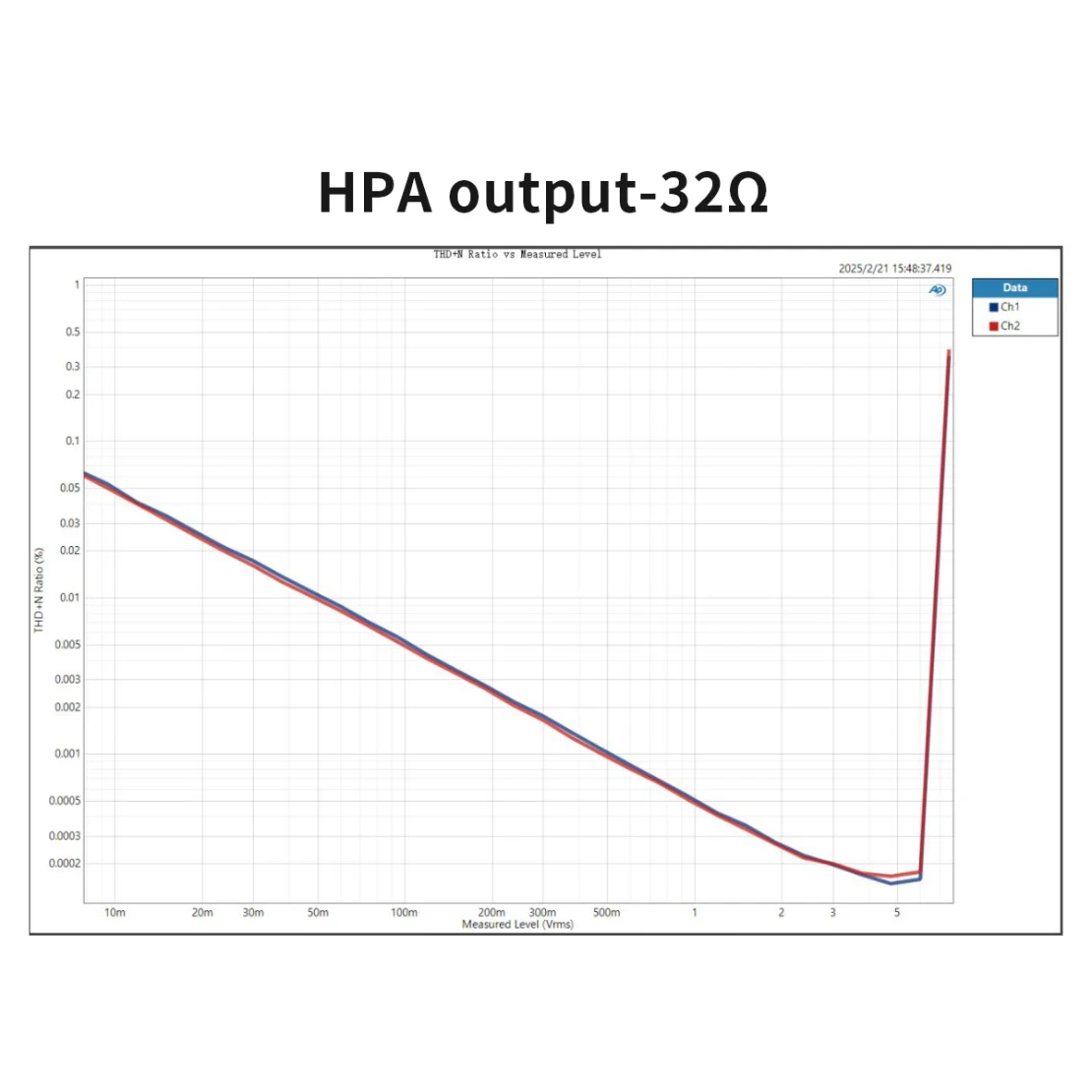

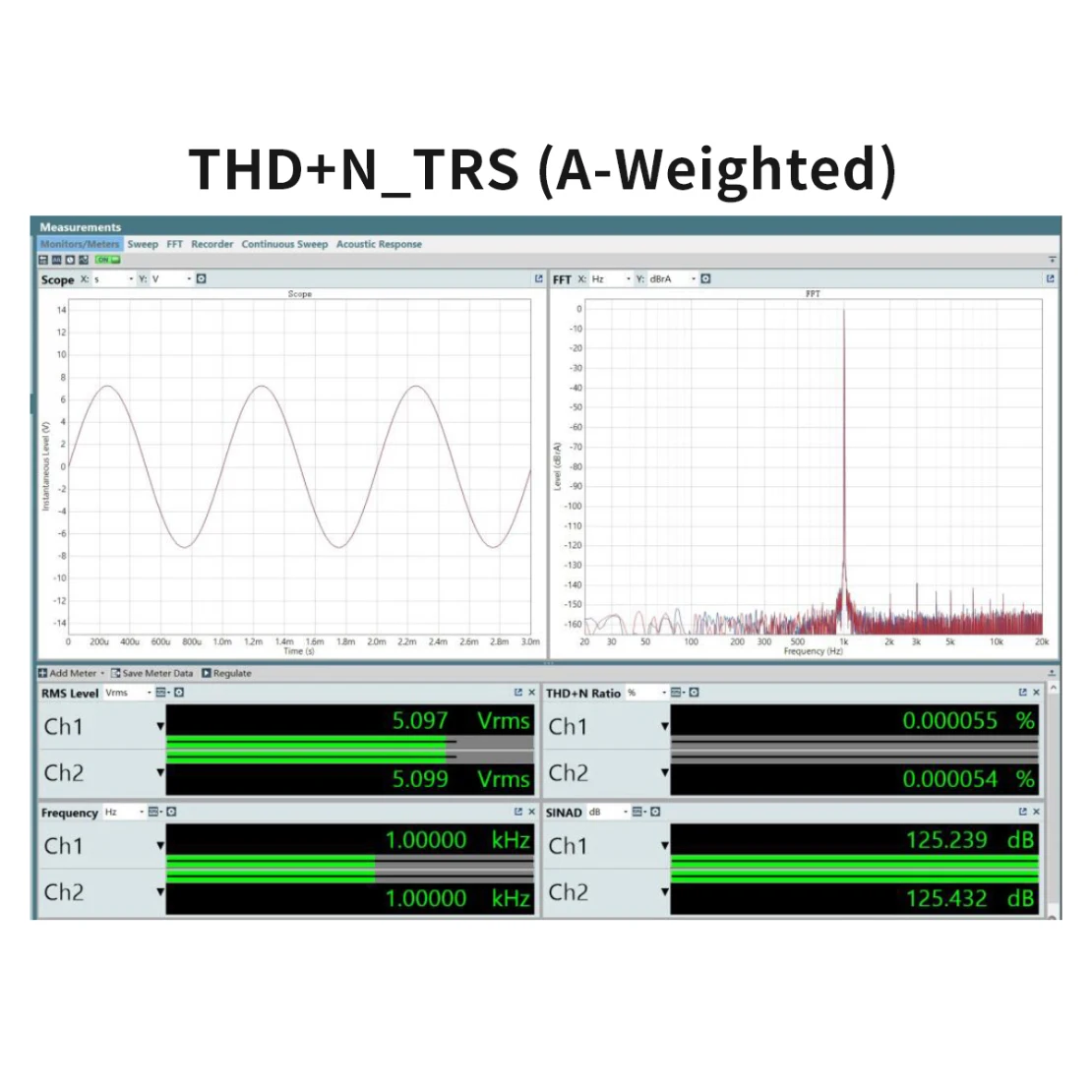

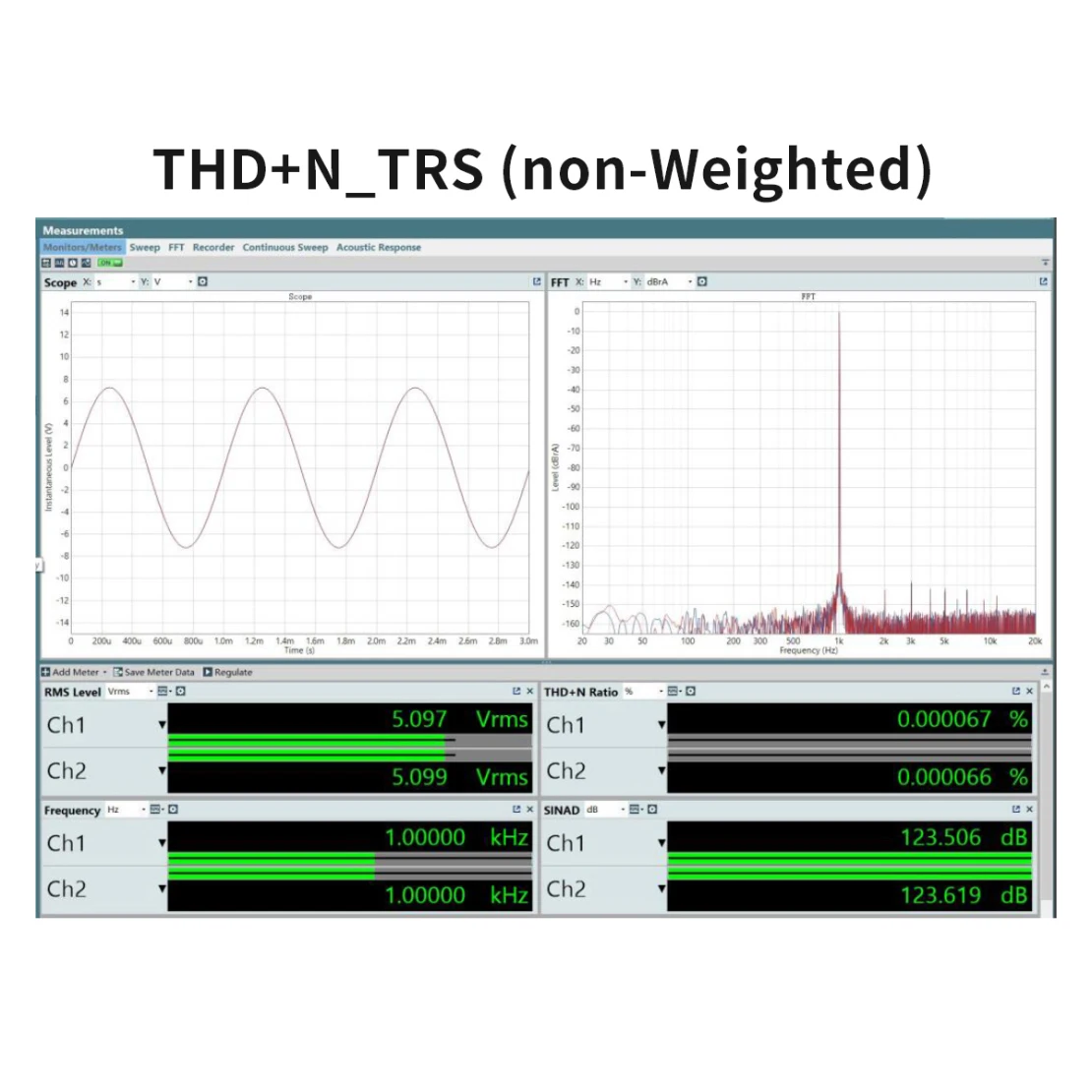

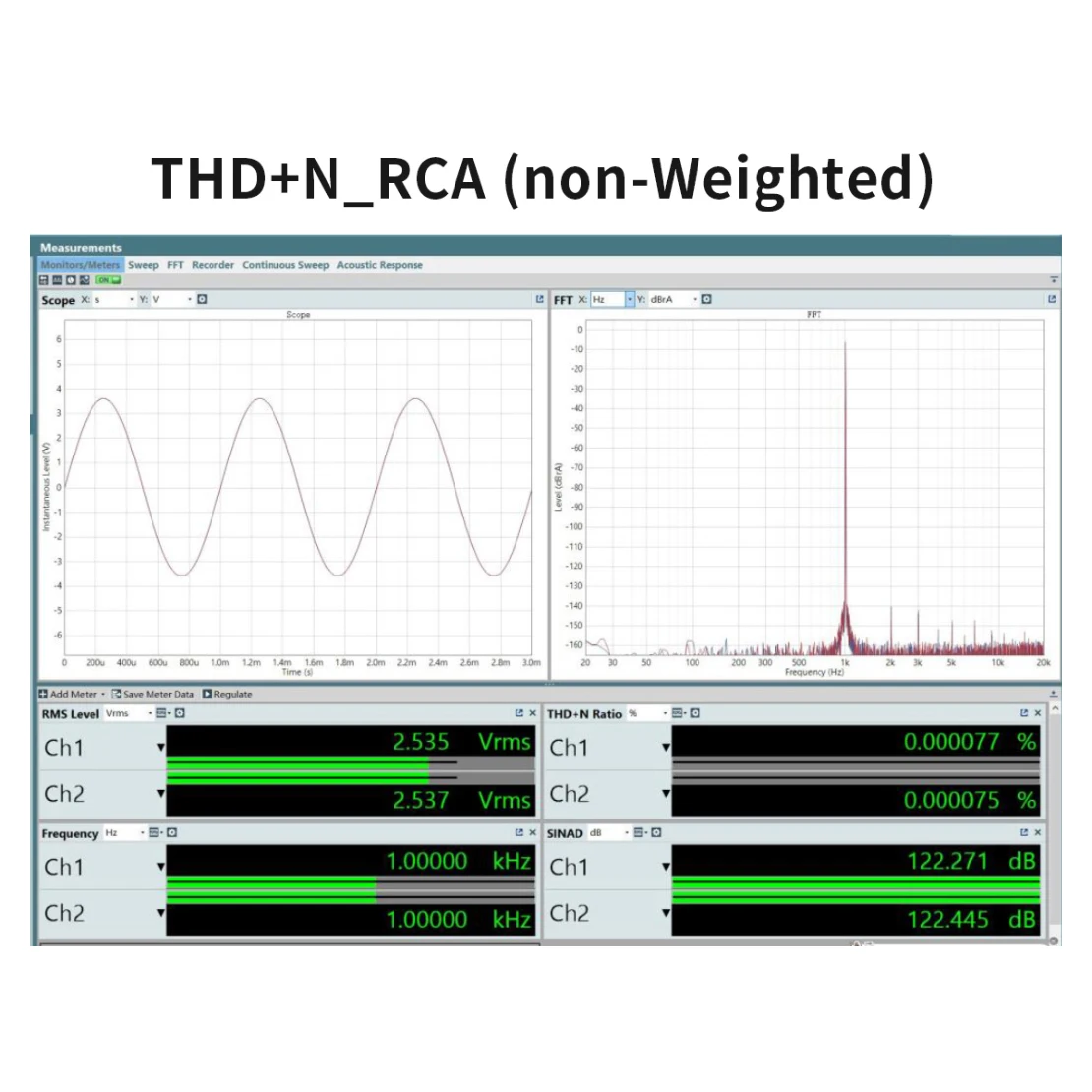

THD+N
Line out 0.00006% (-123.5dB),HP out 0.00009% (-120dB)

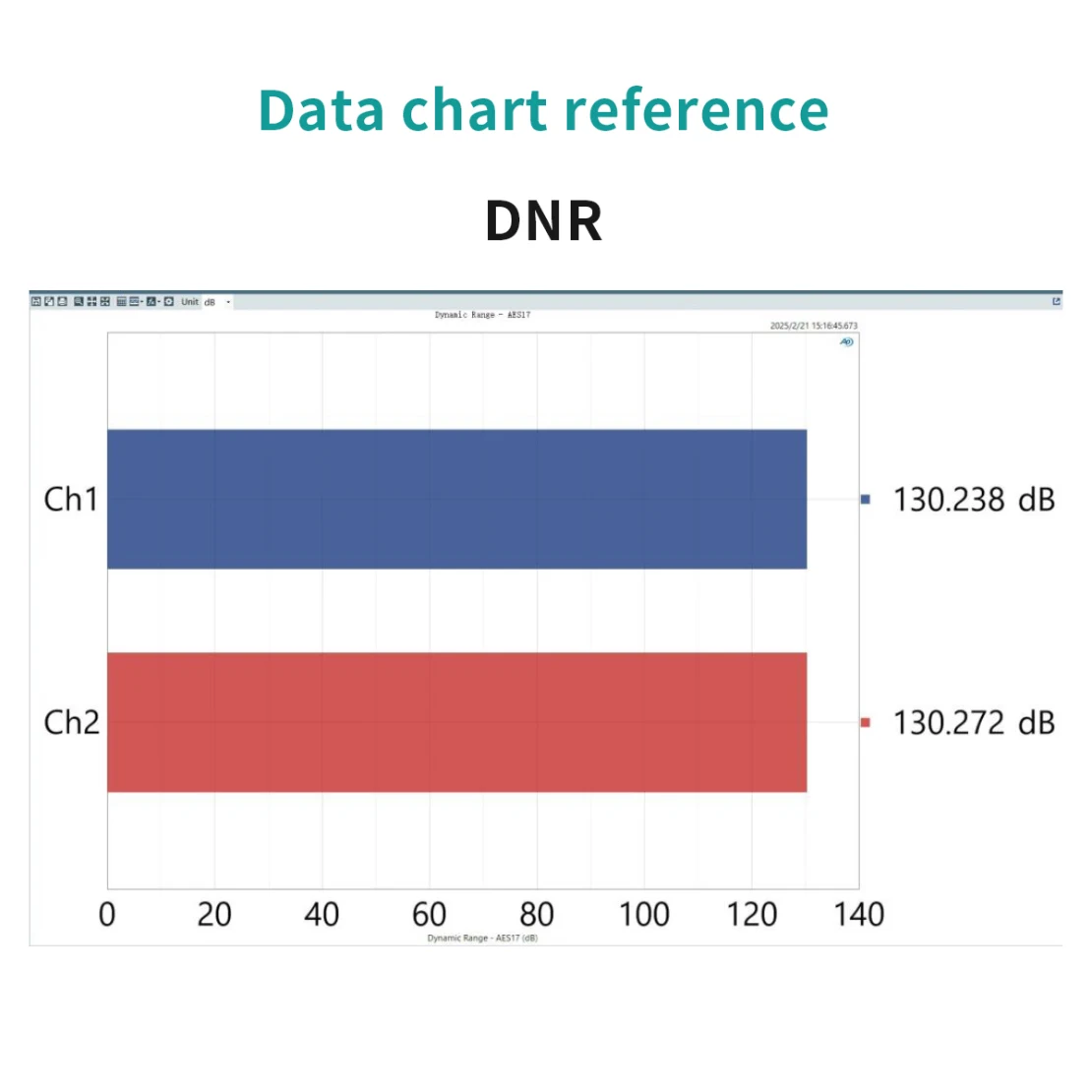

Dynamic range
TRS 129dB,RCA 126dB,HP out 125dB

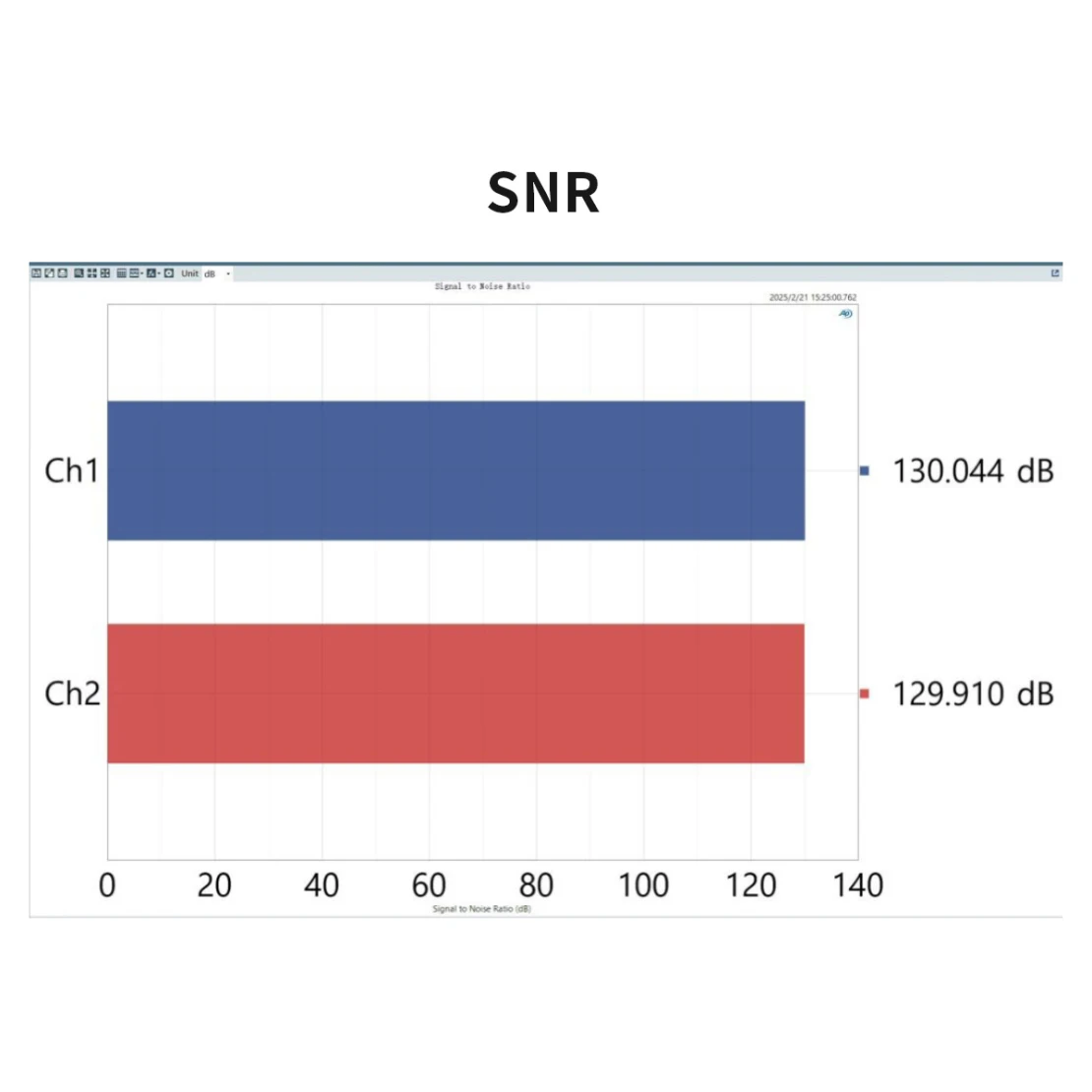

SNR
TRS 129dB,RCA 126dB,HP out 125dB

Output impedance
Line out 100Ω,HP out near0Ω

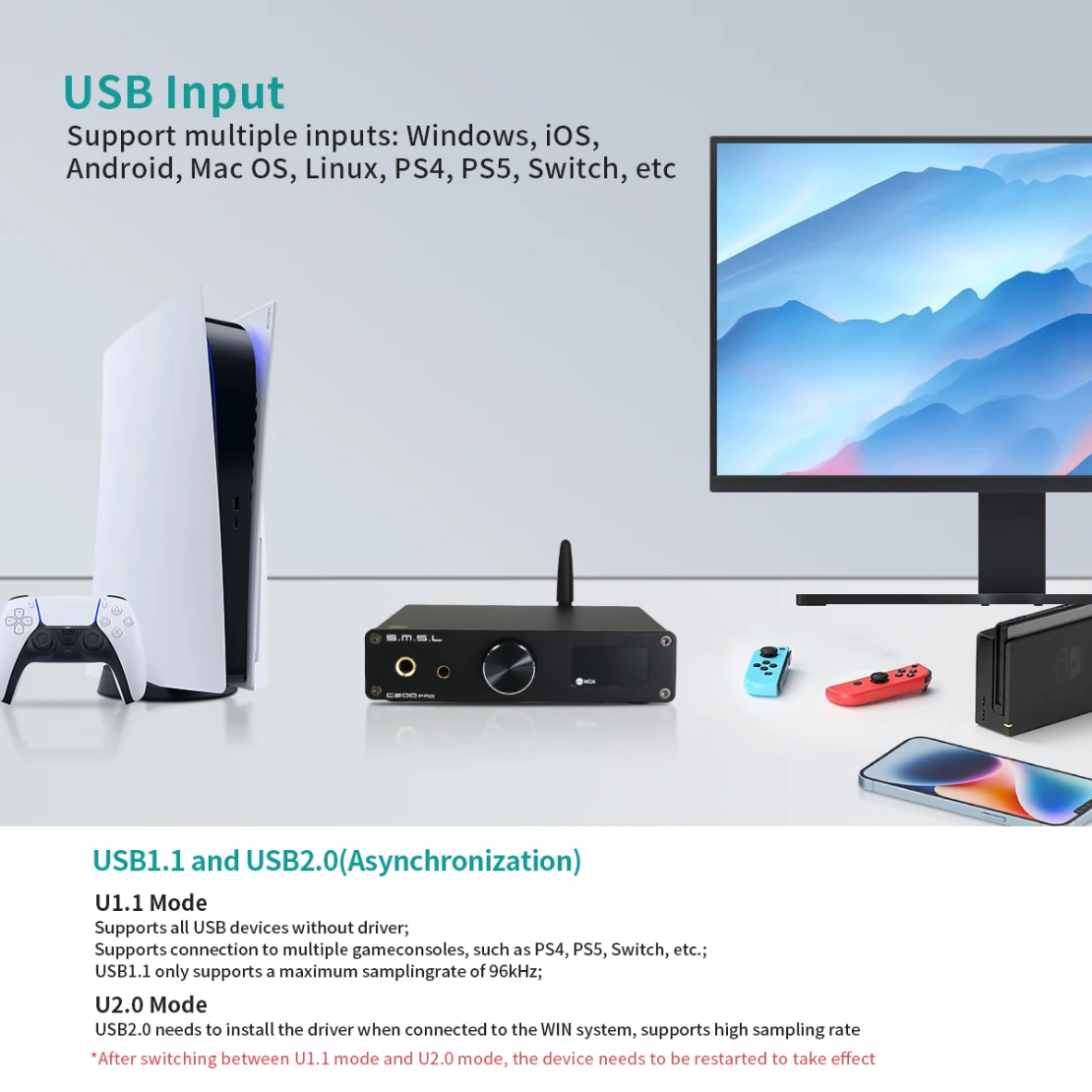

USB transmission
USB1.1 & USB2.0(Asynchronization)

USB compatibility
Windows 7/8/8.1/10/11(Needs Driver)
ios,Android,Mac OS,Linux(Driverless)

Bit depth
USB 1bit,16~32bit
Optical/Coaxial 1bit,16~24bit

sampling rate
USB:PCM 44.1~768kHz,DSD 2.8224~22.5792MHz
Optical/Coaxial:PCM 44.1~192kHz,DSD DSD64(DoP)

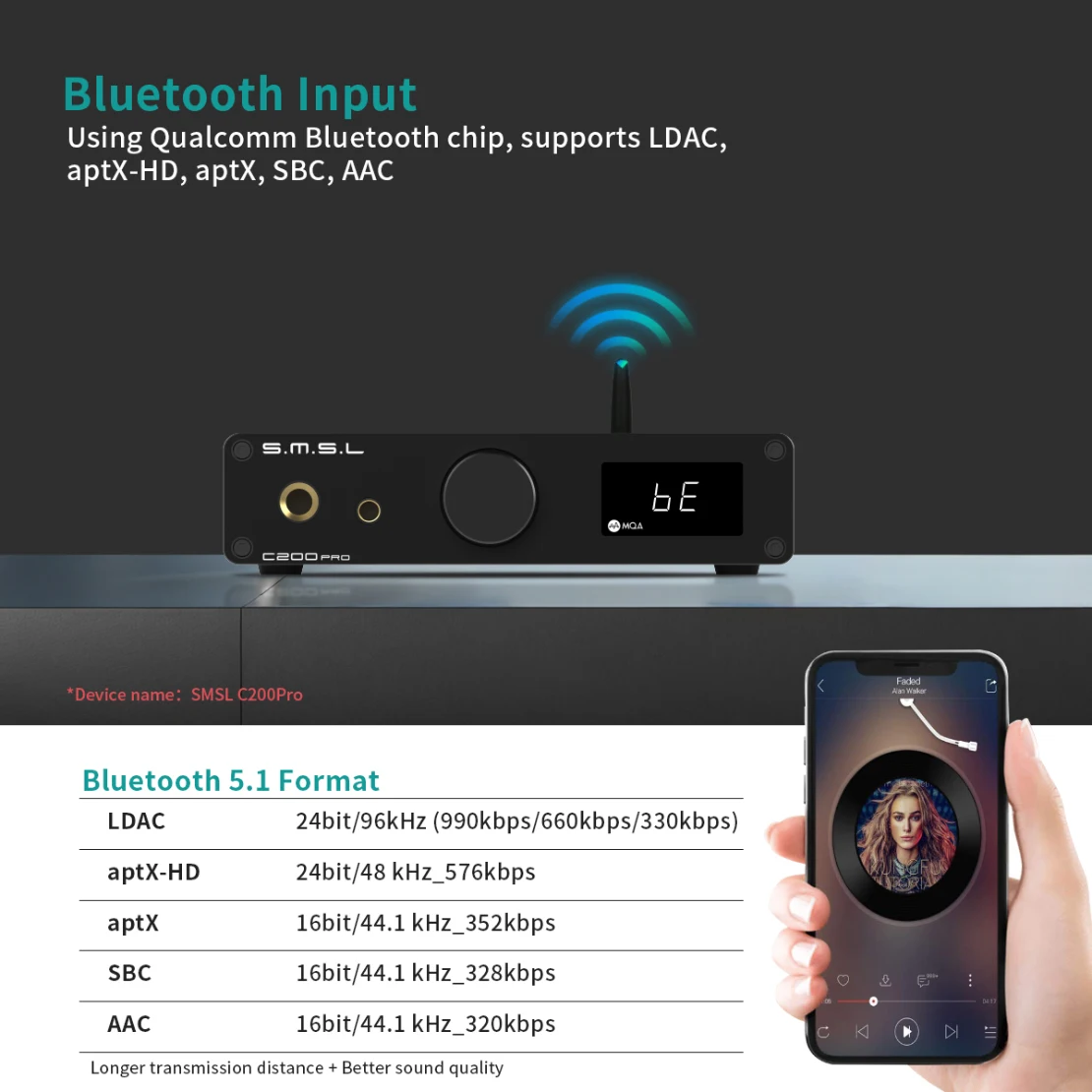

Bluetooth specification 5.1
LDAC 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD 24bit/48 kHz_576kbps
aptX 16bit/44.1 kHz_352kbps
SBC 16bit/44.1 kHz_328kbps
AAC 16bit/44.1 kHz_320kbps

Power Consumption <25W
Standby Power <0.5W

Specifications are subject to change without notice.
