Leicozic Mixer Digital 16 Channel Mixer De Audio Consola Mixer Digitale 16 Mixing Console WIFI Bluetooth USB Recording X16

● 12-channel inputs include: 8 microphone inputs, 2 stereo inputs, and 2 digital stereo inputs (USB playback, USB sound card/optical fiber input).
● The 16-channel inputs include: 12 microphone inputs, 2 stereo inputs, and 2 digital stereo inputs (USB playback, USB sound card/optical fiber input).

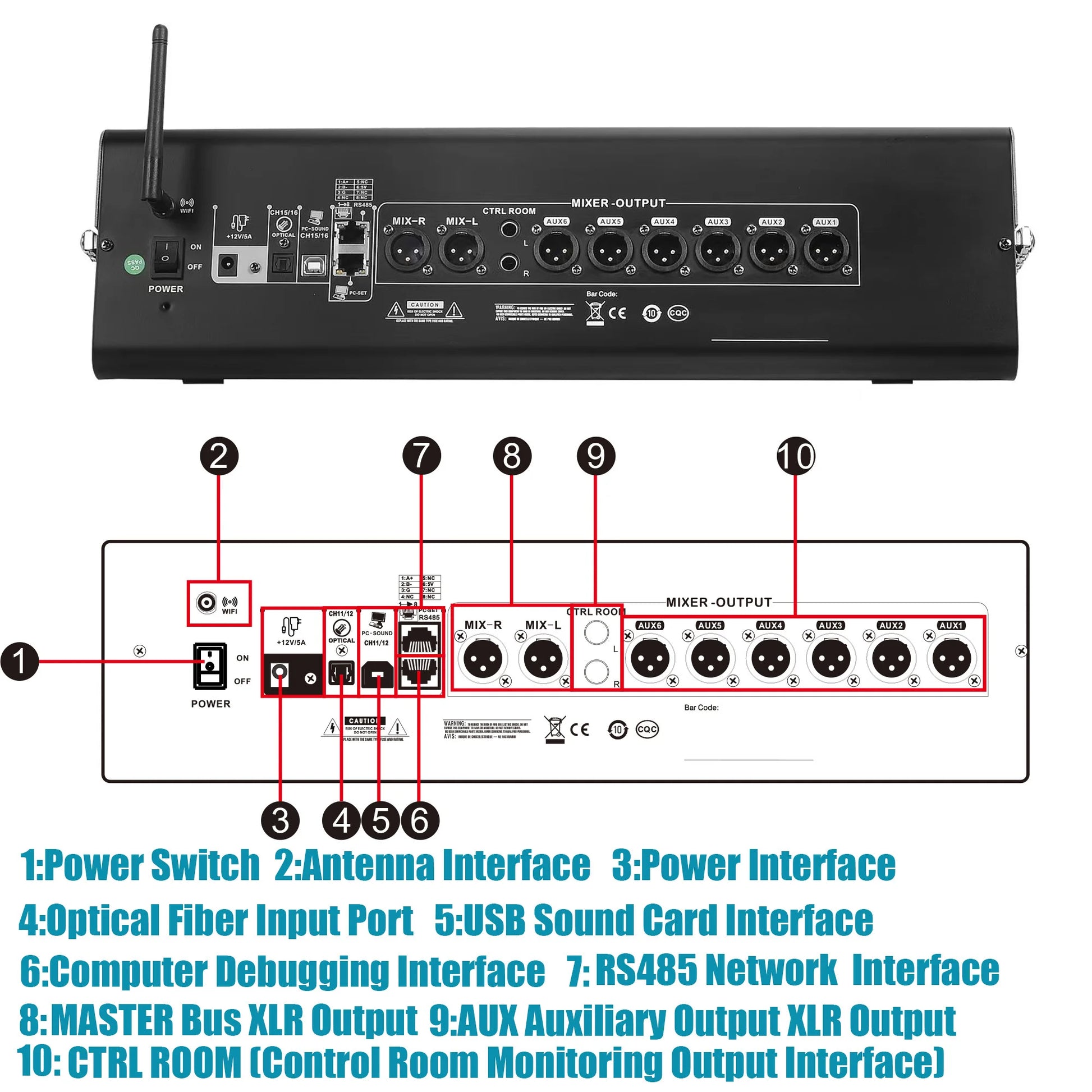

● 6 AUX output channels, 1 stereo main output, 1 stereo monitor output, 2 stereo digital outputs (USB sound card, USB recording).
● All input channels have independent high-pass, low-pass, PEQ, compressor, noise gate, and phase processing.
● All microphone input channels have high-quality, programmable digital gain control and independent phantom power control.
● All AUX output channels have independent divider, PEQ, compressor, delay processing, and output fader front and rear selection.
● The stereo main output channel has independent frequency divider, PEQ, compressor, and delay processing.
● The preset names of all channels can be customized to rewrite the names.
● All input and output channels can support any custom replication, and setting parameters can be stored and called.
● Built-in two independent professional stereo effects, with independent transmission bus, and a variety of effect types are optional. At the same time, it supports 16 custom effect modes edited by users.
● Built-in U disk player, supports real-time stereo recording and playback functions.
● Built-in USB sound card, supports real-time recording and playback functions connected to the PC.
● Support the user’s scene storage and invocation functions.
● It has an independent administrator password and a customizable user password protection function. The administrator password protection is valid for local operations and mobile terminal access at the same time.
● 7-inch high-definition 1280*800 capacitive touch screen, supporting multi-touch operation.
● Built-in Web server based on HTML5 technology, built-in Wi-Fi hotspot, cross-platform support for Apple, Android, Windows and other mobile terminal access, support multi-screen interaction, full-featured operation.
● Support the central control management protocol and realize the system integration application.
● This machine comes with a standard mounting bracket, which can be installed on a standard cabinet.

X16 DIGITAL MIXER

Technical Specifications Translation:

Input Section:
• 16-channel inputs comprise:

· 12 mono microphone inputs

· 2 stereo line inputs

· 2 digital stereo inputs (USB playback, USB audio interface/optical input)

Output Section:
• 6 AUX output channels
• 1 stereo main output
• 1 stereo monitor output
• 2 stereo digital outputs (USB audio interface, USB recording)

Channel Processing Features:
• All input channels equipped with independent:

· High-pass filter (HPF)

· Low-pass filter (LPF)

· Parametric EQ (PEQ)

· Dynamics compressor

· Noise gate

· Phase inversion processing

• All microphone inputs feature:

· High-resolution programmable digital gain control

· Individual +48V phantom power switches

• All AUX outputs include:

· Independent crossover

· PEQ

· Dynamics compressor

· Delay processor

· Pre/post fader output routing

• Stereo main output channel with dedicated:

· Crossover

· PEQ

· Dynamics compressor

· Delay processor

User Customization:
• Fully editable channel name presets
• Cross-channel configuration cloning function
• Comprehensive system parameter save/recall capability

Effects System:
• Dual independent professional stereo effects processors

· Dedicated send/return buses

· Multiple effect algorithms (reverb, delay, chorus, etc.)

· 16 user-programmable custom effect slots

Media Integration:
• Built-in USB media player with real-time stereo recording/playback
• USB audio interface supporting PC-connected digital audio workflows
• Scene memory management with instant recall function

Security Features:
• Hierarchical password protection system

· Administrator-level password for full system access

· Customizable user-level passwords

· Unified security for both local and remote access

Control Interface:

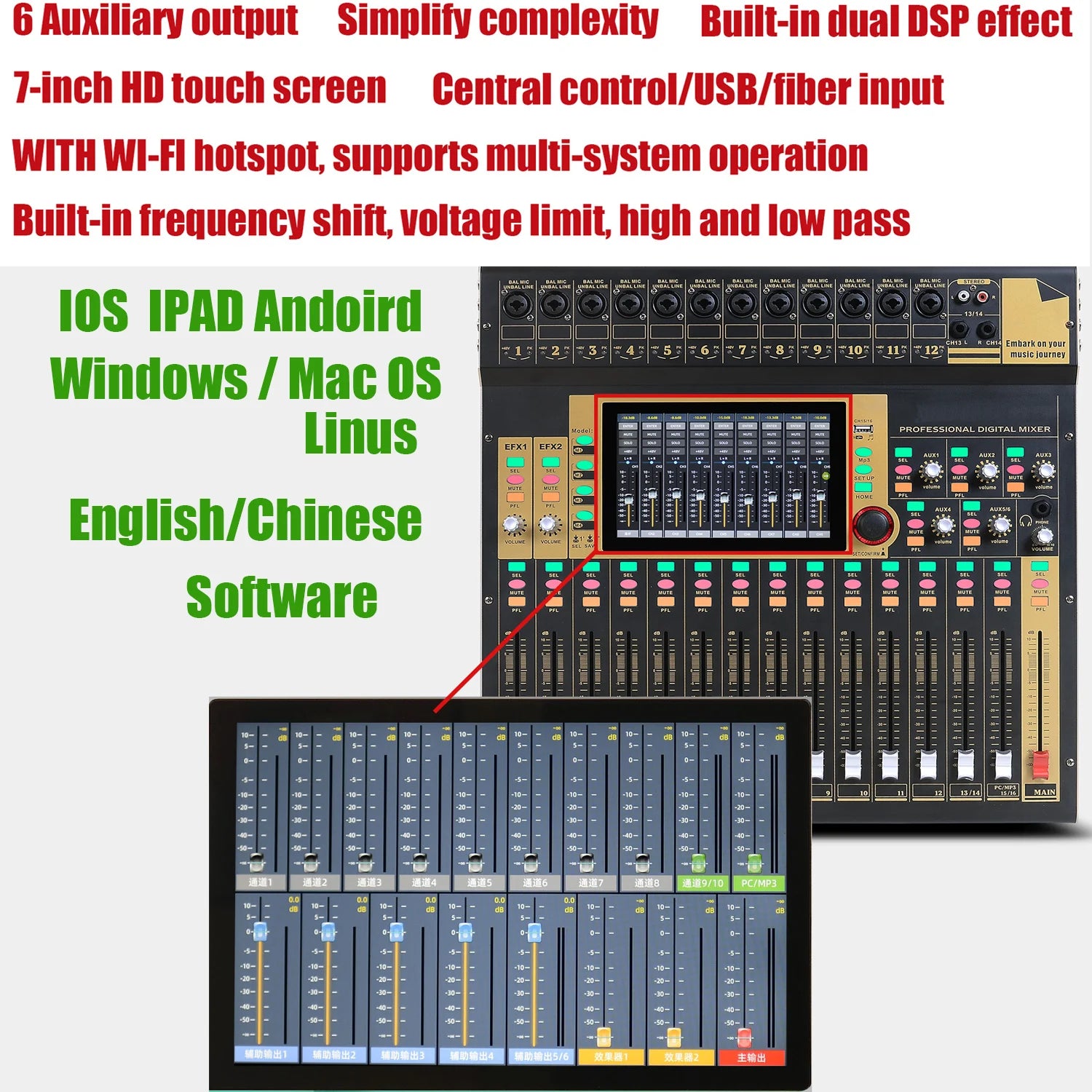

• 7" HD capacitive touchscreen (1280×800 resolution)

· Multi-touch gesture support

· HTML5-based web server with built-in Wi-Fi hotspot

· Cross-platform compatibility (iOS/Android/Windows/macOS/Linux)

· Multi-device synchronization and full-function remote control

System Integration:
• Centralized control protocol support

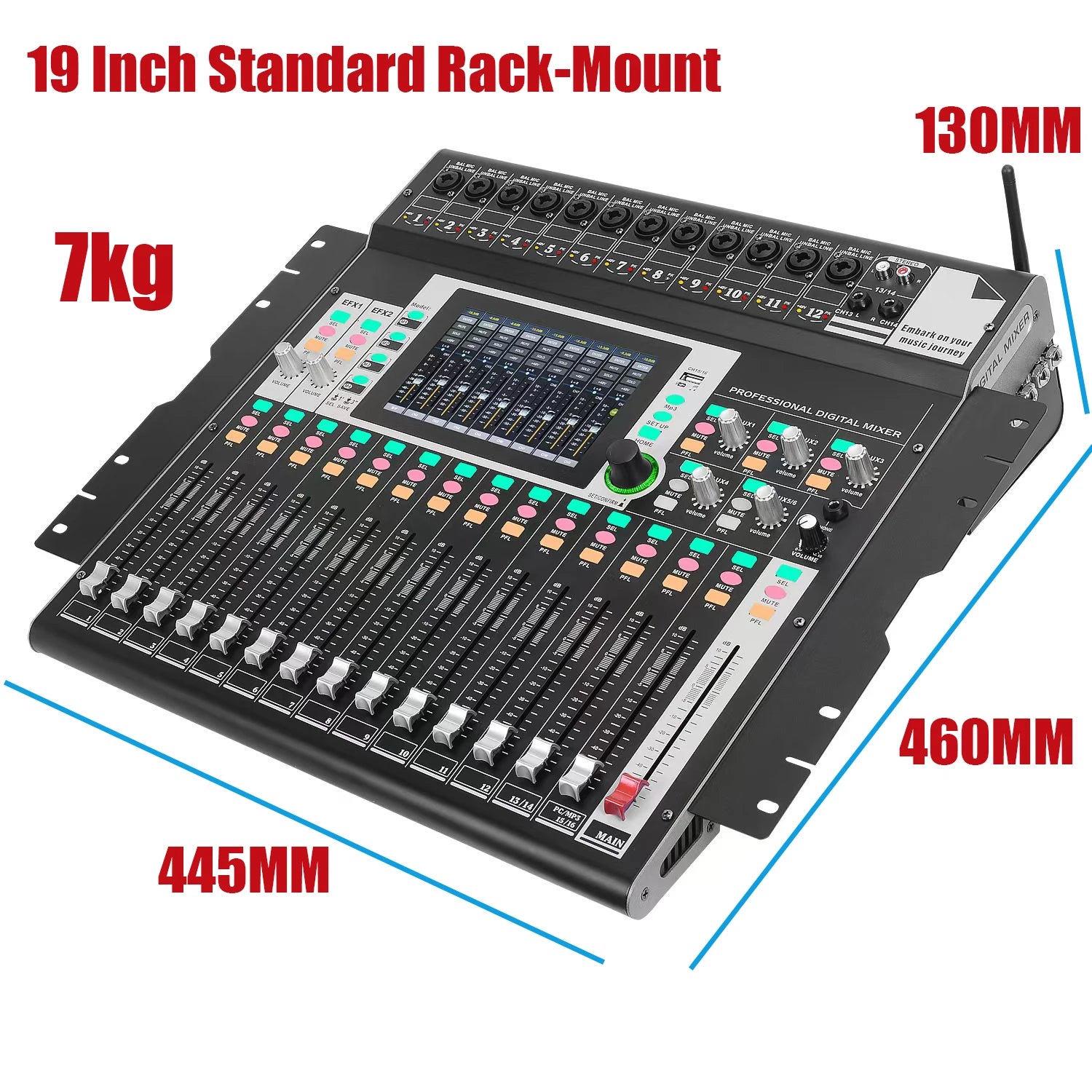

• Standard rack-mount bracket included

· Compatible with 19" equipment racks

· Integrated cable management system
