Behringer WING RACK Rackmount 48-Channel Digital Mixing Engine With 24 Midas PRO Preamps

Description

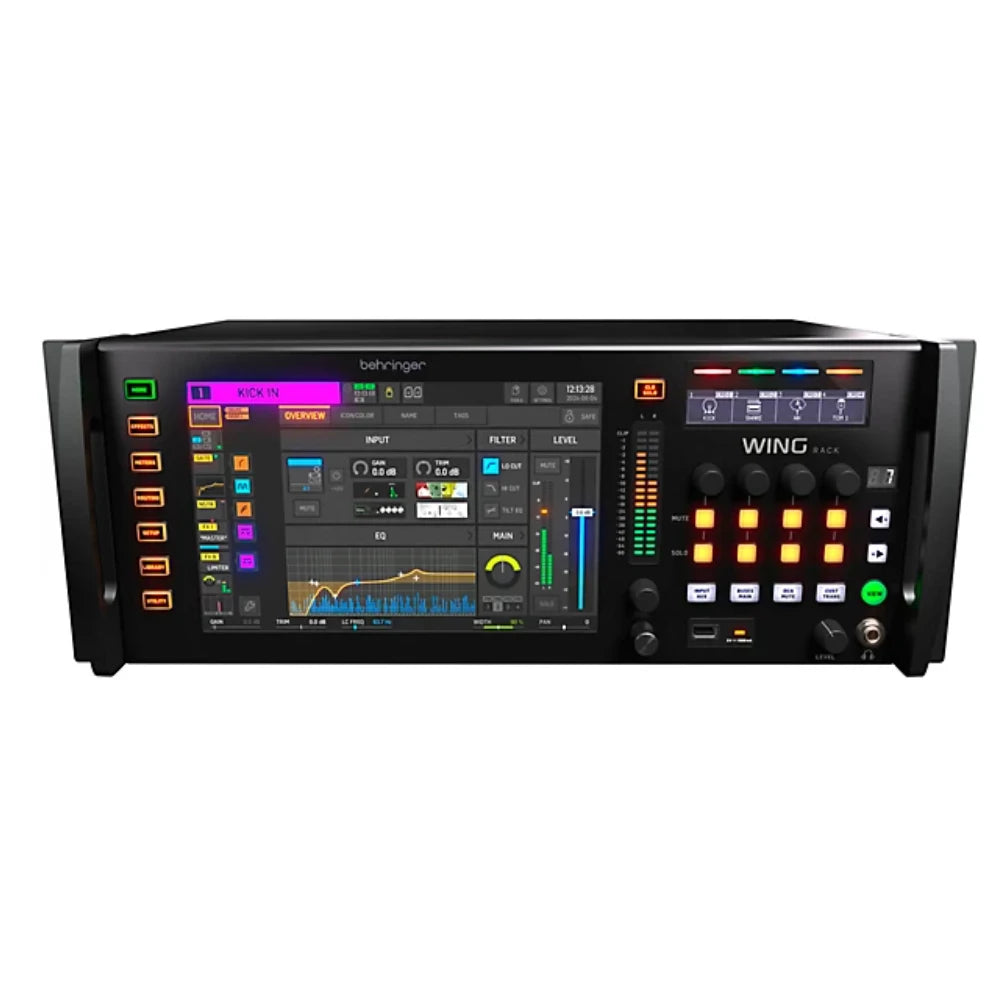

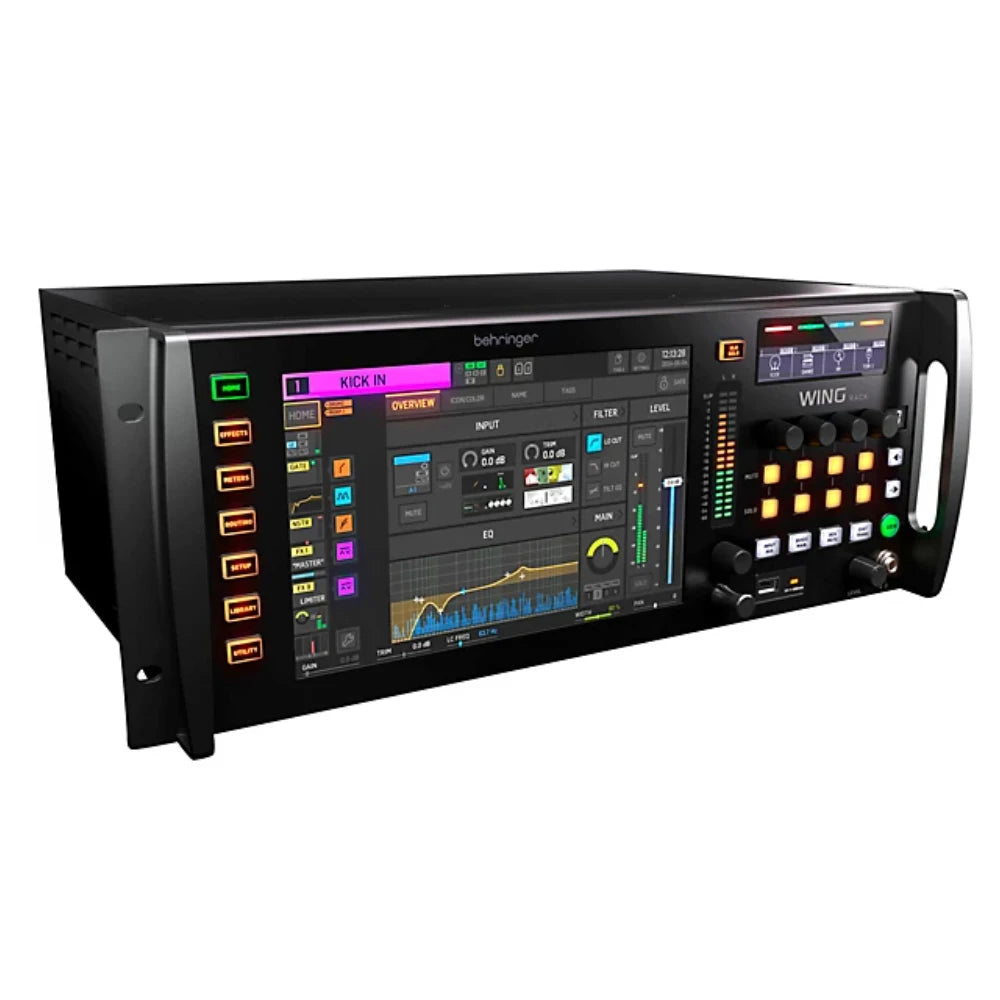

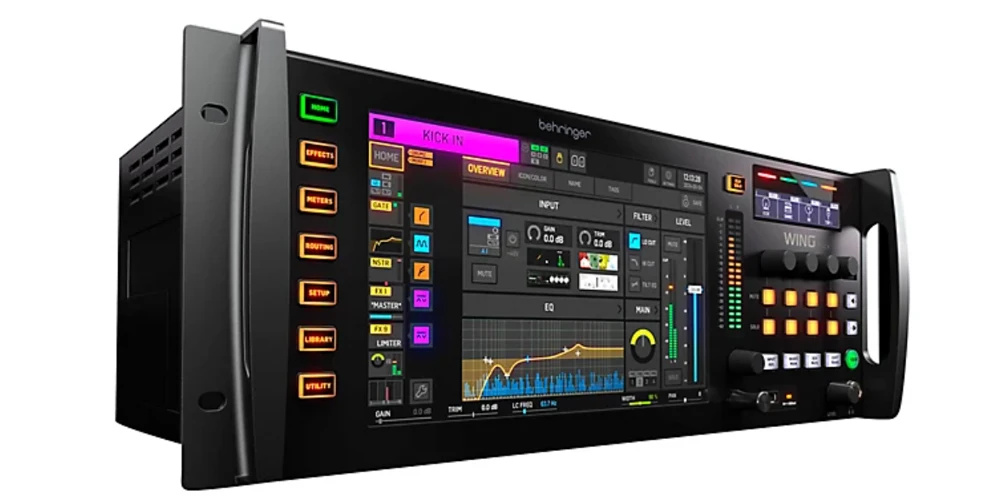

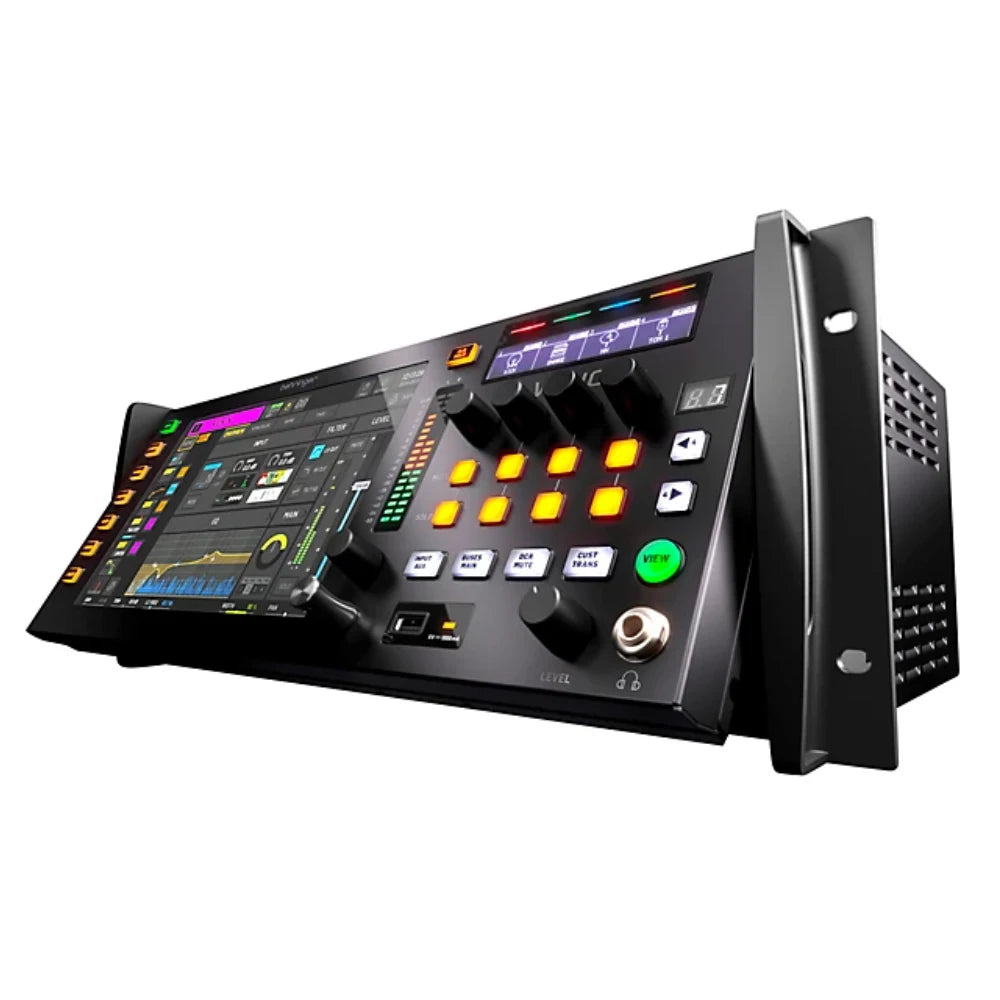

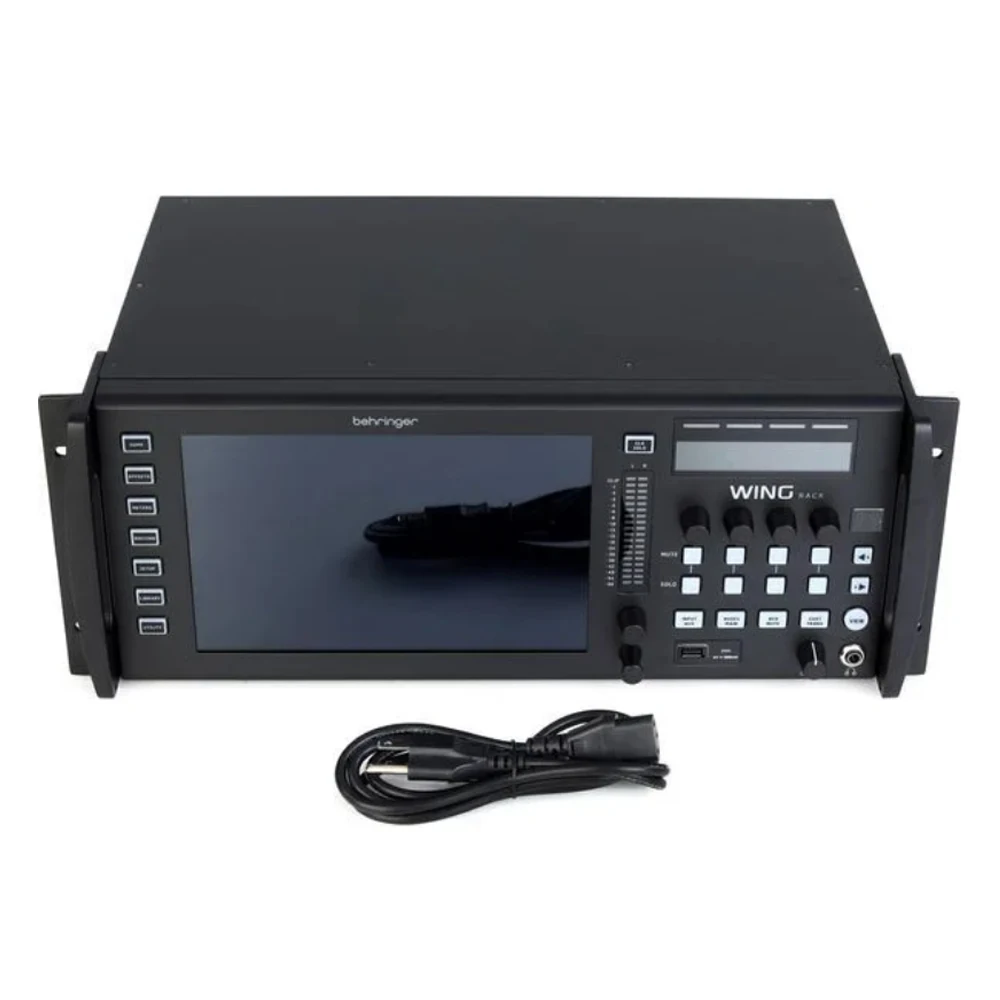

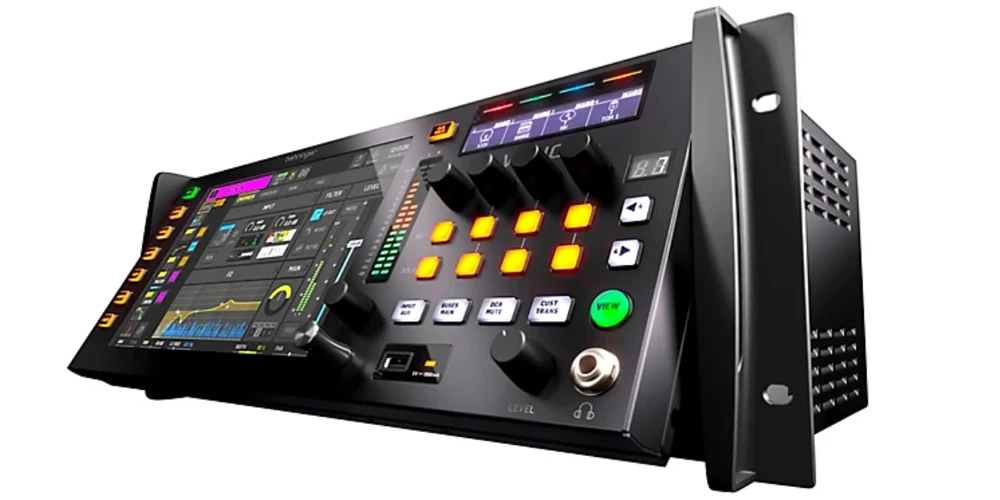

The Behringer WING RACK digital
mixing engine puts professional-grade mixing power in your rack. With 24 Midas
PRO mic preamps and eight MIDAS PRO outputs, it delivers pristine audio quality
for live sound and recording applications. The 19" rackmountable design
saves space in your studio or on stage. For fast, intuitive operation, it
features a 10.1" multi-touch display, eight buttons and four encoders.

Premium Midas PRO Preamps

The 24 Midas PRO mic preamps
provide crystal-clear gain for miking vocals, drums, guitars and more. Their
ultralow noise and wide gain range capture audio with nuanced detail and
natural warmth. The eight MIDAS PRO outputs maintain this impeccable fidelity
for your mains, monitors and recording equipment. For the best sound in and out,
the WING RACK is built with high-end components from Midas, a brand renowned
for its analog consoles used in world-class studios and live venues.

Powerful Mixing and Processing

With 48 input channels, 28
busses and 16 stereo FX engines, the WING RACK handles complex mixes with
processing headroom to spare. Shape your sound with EQs, dynamics control and
reverb on every channel. The main, matrix and AUX busses also offer graphic EQ,
stereo imaging and dynamics for sculpting your overall mix. Over 80 studio-grade
effects from TC Electronic and Universal Audio provide creative sound design
options for recording and live performance.

Flexible I/O and Networking

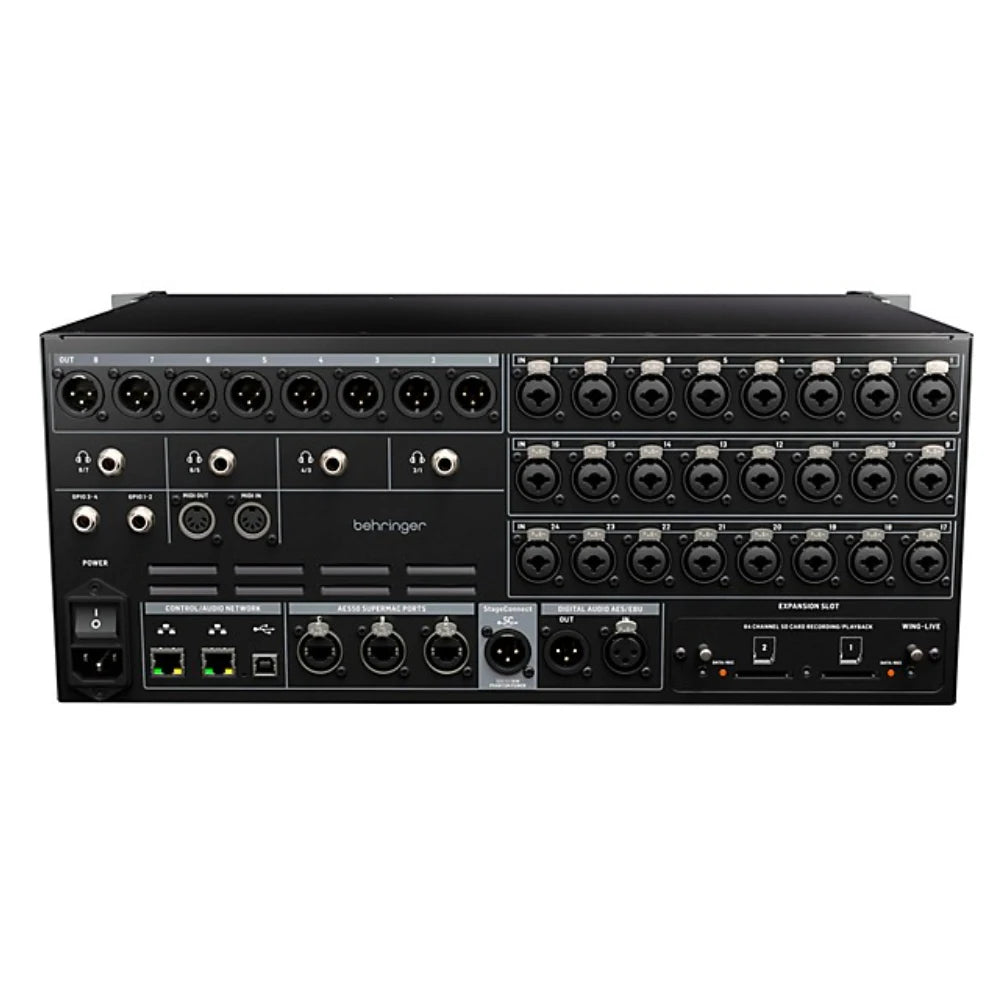

The WING RACK offers extensive
connectivity for interfacing with other gear. Its SuperMAC ports provide 144
inputs and outputs over CAT5 cable with ultralow latency. The rear expansion
slot supports optional interface cards for 64 channels of Audinate's Dante and
Waves SoundGrid. A stagebox connection shares 32 channels over a single XLR
cable. Dual Ethernet ports enable remote control from WING's editing software
and the Mackie MCU. USB audio/MIDI I/O provides 48 channels for your DAW.

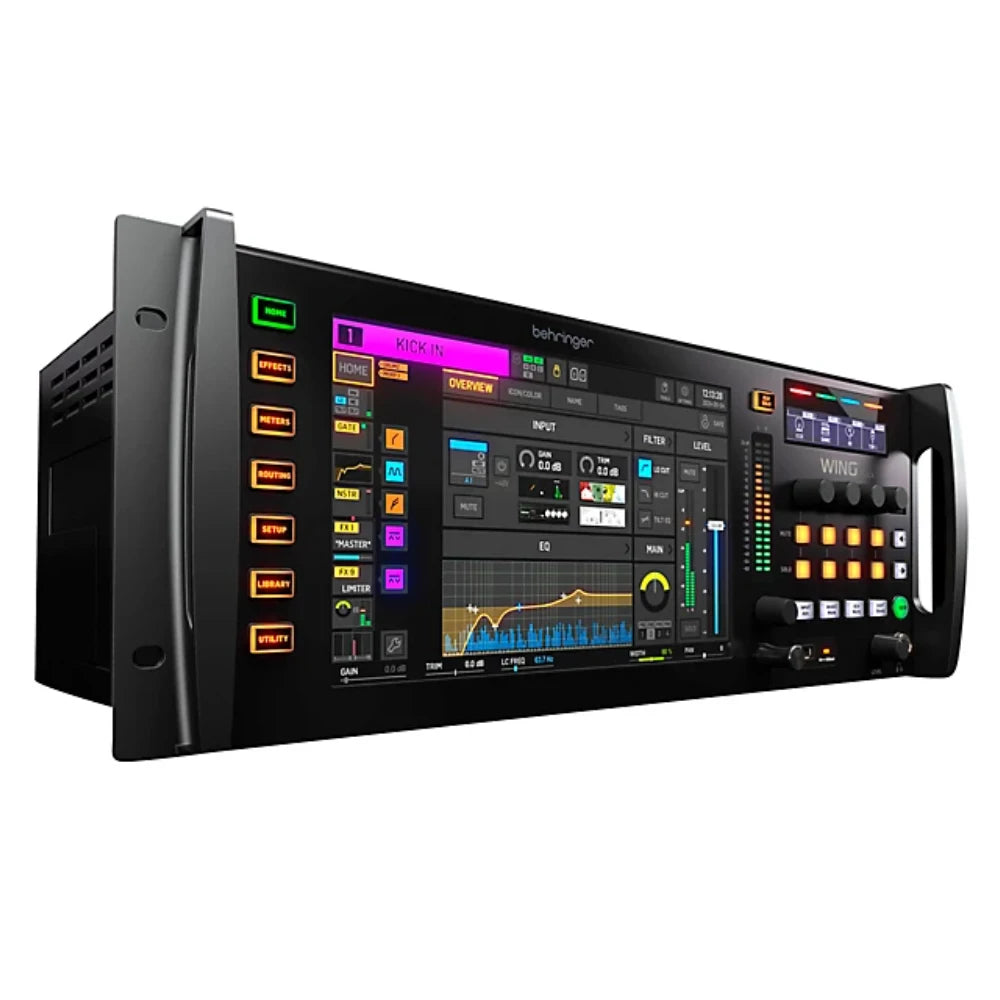

Intuitive Control

Despite its processing power,
the WING RACK is easy to operate thanks to its touchscreen interface and
hands-on controls. The 10.1" main display shows an overview of all
channels and busses at once. Tap, swipe or turn the four encoders and eight
buttons to quickly access any parameter. Eight mute groups and eight DCA groups
simplify managing complex channel layouts. Customize the soft keys and encoders

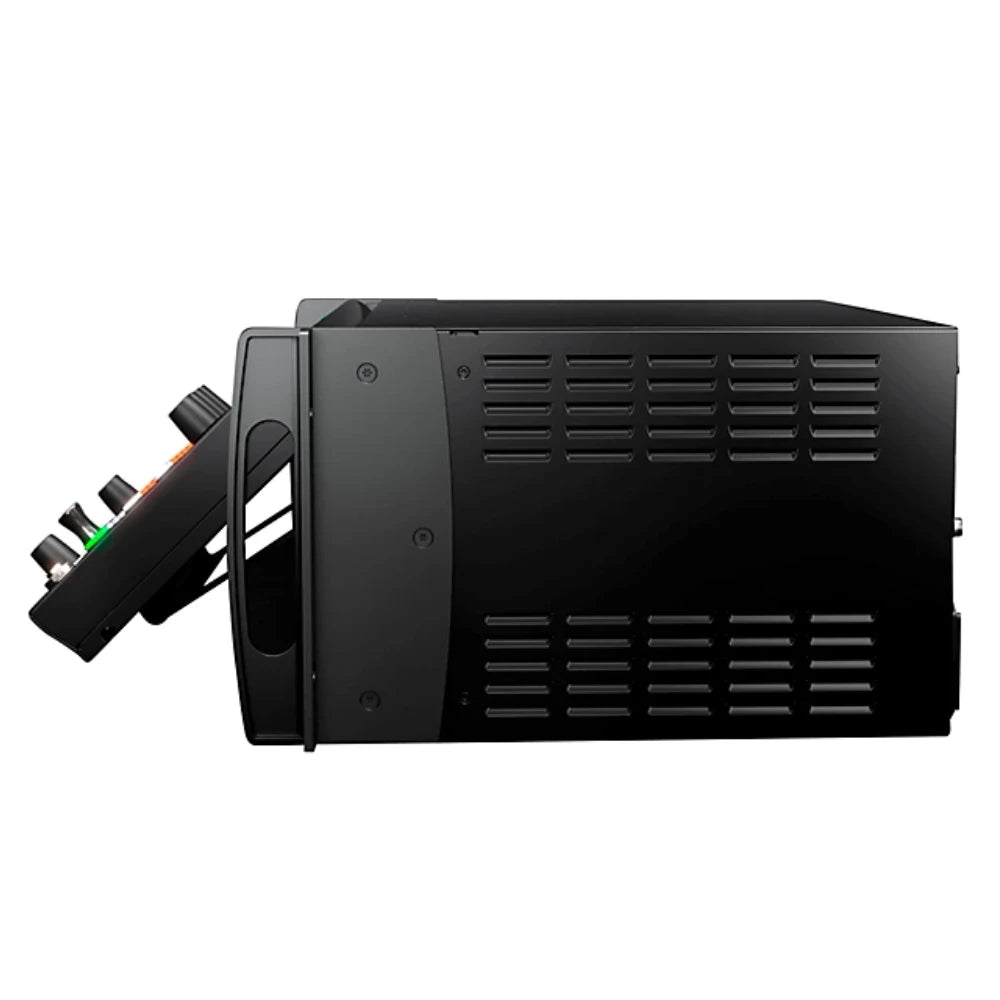

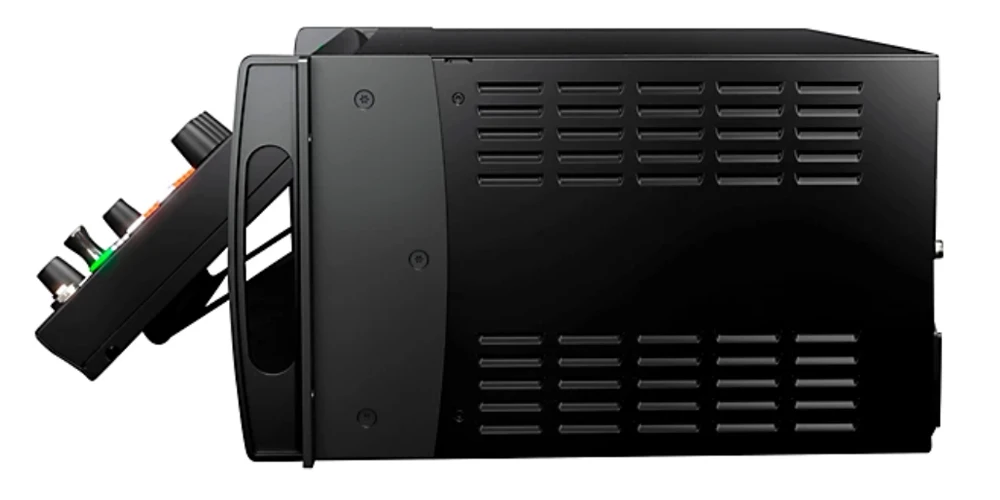

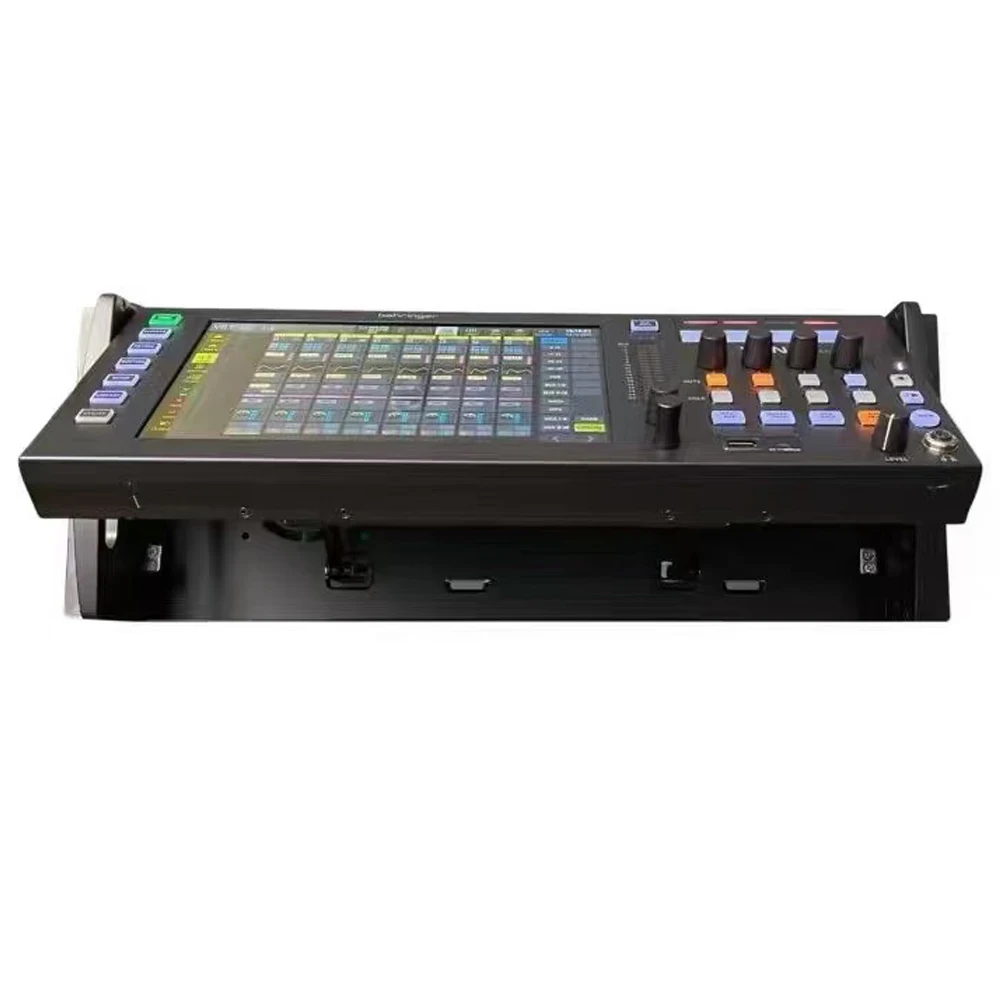

to control your preferred functions. An adjustable front panel provides the
perfect viewing angle in any rack. For full-featured remote control, use the
free WING Co-Pilot app on your mobile device or WING-Q and WING-Edit on your
laptop.

Features

·24 Midas PRO
mic preamps

·10.1"
multi-touch display

·16 stereo FX
engines with 80+ algorithms

·Dual SD card
live recorder/player

Specs

• Frequency
  Response: @ 48kHz sample rate, 0 to -1dB (any gain setting): 10Hz–20kHz

• Dynamic
  Range (typical), analog in to analog out (XLR/AUX): 111dB/108dB

• A/D
  Dynamic Range (Preamplifier and Converter, XLR/AUX): 112dB/110dB

• D/A
  Dynamic Range (Converter and Output, XLR/AUX): 118d /112dB

• Crosstalk
  Rejection @ 1kHz, Adjacent Channels: 100dB

• Output
  Level (XLR connectors, nominal/maximum): +4dBu/+21dBu

• Output
  Impedance (XLR connectors, unbalanced/balanced): 75 ohm/75 ohm

• Input
  Impedance (TRS connectors, unbalanced/balanced): 20 kohm/40 kohm

• Non-Clip
  Maximum Input Level (TRS connectors): +16dBu

• AUX
  Output Level (TRS, nominal/maximum): +4dBu/+16dBu

• AUX
  Output Impedance (TRS, unbalanced/balanced): 150 ohm/300 ohm

• Phones
  Output Impedance/Maximum Output Level: 1W Max @ 30 ohm

• Residual
  Noise Level (XLR Out 1-16 Connectors, Unity Gain): -97dBu

• Residual
  Noise Level (AUX and Monitor TRS Out Connectors): -95dBu

• Main
  Screen: 10.1" TFT LCD, 1280 x 800 px, capacitive touch

• Main
  Screen Swivel: Continuous adjustment, 15°–60°

• 4-Channel
  Group LCD Screen with RGB Color Strip per Channel: 320 x 48 monochrome

• Touch-Sensitive
  Rotary Controls: 4

• Custom
  Controls: 8

• Fully
  Assignable Rotary Controls: 4

• Fully
  Assignable Backlit Buttons: 8 + 8

• Variable
  Rotary Controls / Buttons: 4/4

• Switch-Mode
  Power Supply: Auto-ranging 100-240 VAC (50/60Hz)

• Power
  Consumption: 130W

• Standard
  Operating Temperature Range: 41°F–104°F

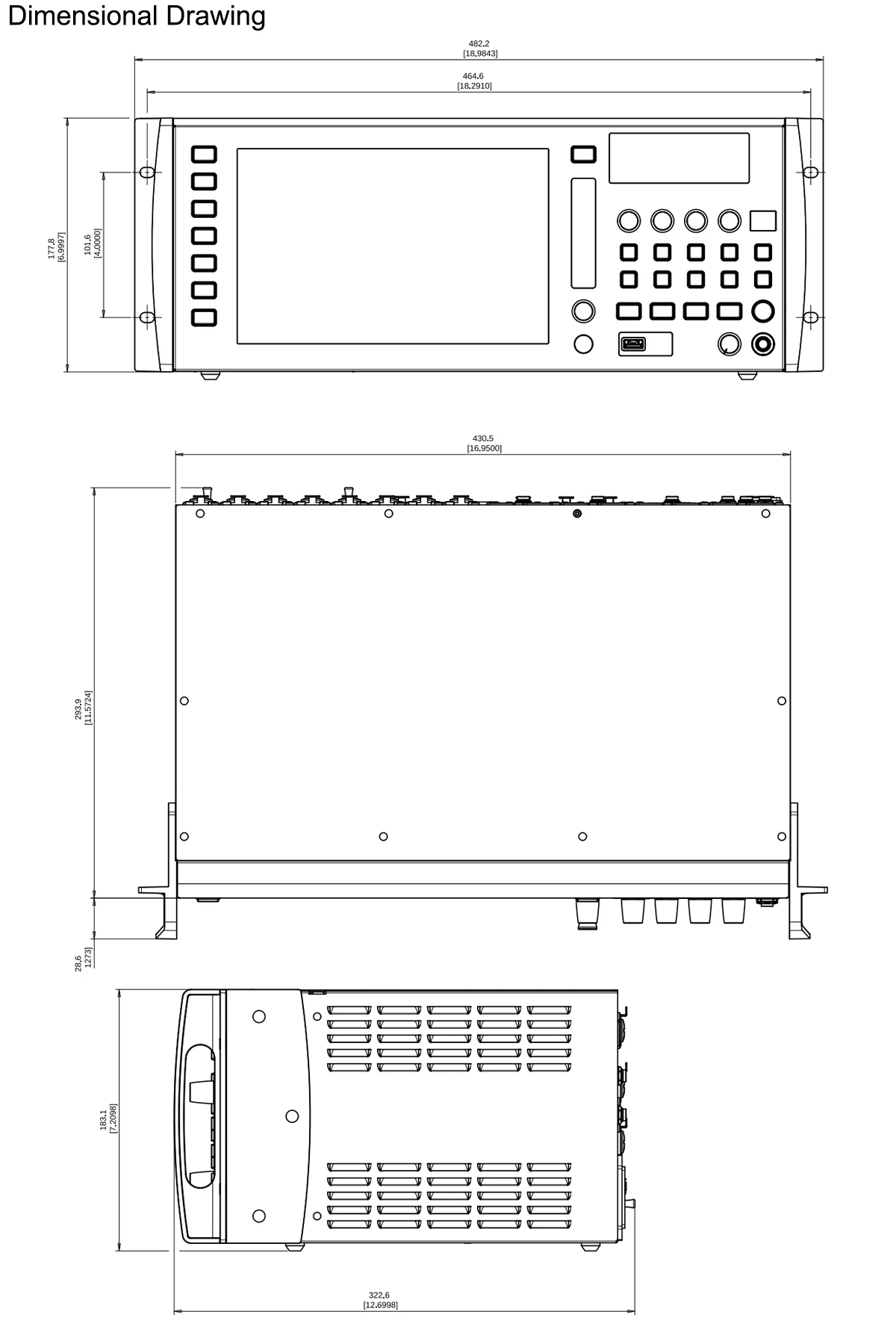

• Dimensions:
  19.1” x 12.8” x 7.2”

• Weight:
  20.8 lb.
